Gunt - Model HM 270 - Impulse Turbine
In impulse turbines, the working medium has the same static pressure in front of and behind the rotor. The conversion of pressure energy into kinetic energy takes place in the fixed nozzles of the distributor, not at the turbine rotor. This compressed-air driven experimental unit can be used to understand turbines powered by steam or water.
- characteristic behaviour of an impulse turbine with air flow
- optimal view of the operating area of a turbine
- load applied by wear-free eddy current brake
Axial impulse turbine
- max. power: approx. 30W at 15000min-1
Rotor
- Ø outer: 55mm
- number of blades: 28
Distributor
- 4 nozzles, number can be selected
- entry and exit angle: 20°
- temperature: -20…1100°C
- speed: 0…30000min-1
- torque: 0…10Ncm
- flow rate: 2…16Nm3/h
- inlet pressure: 0…2,5bar
- outlet pressure: 0…0,1bar
- primary pressure: 0…10bar
230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase
UL/CSA optional
- investigation of a compressed air driven axial impulse turbine
- transparent front panel for observing the operating area
- distributor with 4 nozzles
- selectable number of nozzles
- applying a load to the turbine by using the wear-free eddy current brake
- setting the primary pressure with the pressure reducing valve
- valve and flow meter for setting the flow rate
- solenoid valve as a safety device to prevent overspeed
- determination of the torque on the turbine shaft using a force sensor
- measurement of the turbine speed with an optical speed sensor
- manometer for displaying pressures on the inlet and outlet side
- digital display of speed, torque and temperature

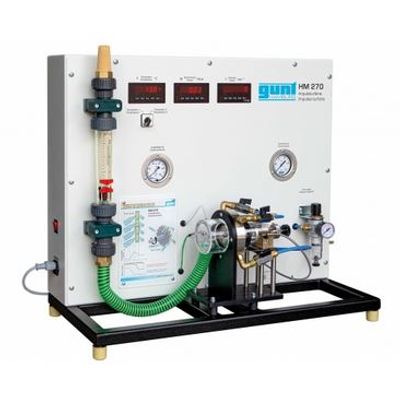

The HM 270 is a single-stage, axial impulse turbine. The turbine consists of a rotor that is installed inside a transparent housing, a distributor with four nozzles and an eddy current brake for applying a load to the turbine. The number of active nozzles can be adjusted by means of the valves. The compressed air velocity is increased in the nozzles. The air flow that hits the blades generates an impulse that causes the rotor to start moving.
The inlet and outlet pressure at the turbine are indicated on manometers. The turbine torque is determined by measuring the force on the eddy current brake. The speed is measured with an optical speed sensor. Torque, speed and temperatures are digitally displayed. The air flow rate is measured with a rotameter and set by means of a valve.
The turbine is fitted with a solenoid valve as a safety device in case of overspeed.
- LxWxH: 780x370x660mm
- Weight: approx. 35kg
