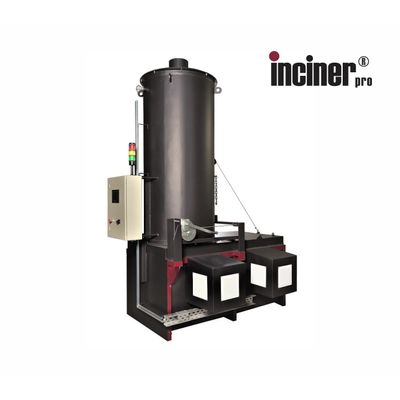

IncinerPro - Model i400 -Stationary Incinerator

AS STANDARD EQUIPPED WITH:

• 2 combustion chambers (main and post-combustion), in order to be fully consistent with the requirements of EC Regulation 1069/2009 and EU 142/2011
• 2 fully automated, independent burners, one for each incinerator combustion chamber
• Control panel with touch-screen technology
• Automated programming and control system for combustion parameters and cycles
• Visual and audible alarm system
• Refractory concrete resistant to high temperatures (1,500 ° C)
• Thermocouples for keeping temperatures at set values
• Double ventilated chimney
• Winch waste loading door, with safety system against accidental closing

OPTIONALS:

• Separate door for removing ash during burning

Burning rate, load capacity, fuel and current consumption are parameters that depend on the waste (type, volume, species, waste’s age, humidity, density, how it was mixed), incinerator loading mode, technical state of the burners and incinerator, fuel quality.

It is very important to understand that the burning rate is heavily influenced by many parameters. Because there are no 2 identical waste batches, the operator(s) must try to load a mixture of different animal wastes for a better incineration process.  A correct mixture of waste will ensure better burning rate and lower fuel consumption.

Please read the instructions carefully and follow our technical advice as much as possible. Burning process in an animal waste incinerator is different from burning process in a boiler (where only fuel is burned).

• Loading method: up
• Primary chamber volume: 0,67 m³
• Load capacity: up to 400 kg (depends on volume)
• Burn rate: depends on waste (type, humidity, calorific value)
• Gas retention time: min. 2 sec. at min. 850 °C
• Overall dimensions (L x l x h): 2,85 x 1,56 x 3,28
• Weight: 3,51 tones
