Hohner - Model 07 Series -Incremental Hollow Shaft Encode

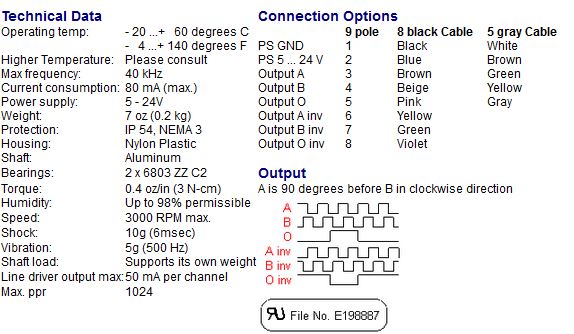

Series 07 incremental hollow shaft encoder up to 12 mm. Mount fixture to the encoder with three self-tapping No. 8 screws and three No. 8 washers.  Slide the encoder onto the shaft.  With two 1/4-20 screws, tighten the encoder fixture to the motor-frame or machine.  Keep clearance between the encoder and motor or housing by bending the fixture arms as required.  Tighten the setscrew onto the shaft.  Connect the encoder as per wiring specifications. Make sure power supply is within the proper voltage and current rating.  Encoder can be mounted with the setscrew on the machine side or on the opposite side for either CW or CCW.  See datasheet for CW and CCW directions of the outputs.
