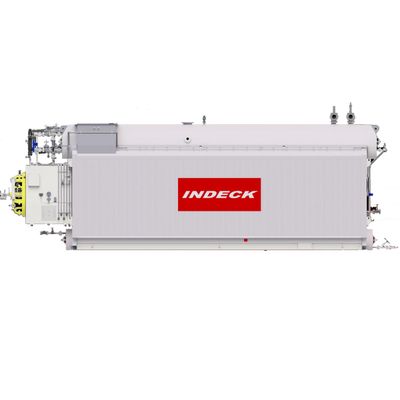

Indeck - Model O Type -Watertube Boilers
Indeck’s “O” Type watertube boilers are designed with the flexibility in mind. The versatile drum orientation allows Indeck’s “O” model boilers to meet unique project requirements for shop-assembled or field-erected boilers. The “O” type watertube boiler is capable of producing steam up to 1,000,000 lb/hr at design pressures over 2000 PSIG and superheated steam over 1,050°F.
Most popular related searches
- TYPES: “O” Series
- CAPACITIES: 20,000 – 500,000 LB/HR
- PRESSURES: 150 – 2,000 PSIG
- FUELS: Natural Gas, Various Waste and Off-Gases, #2 – #6 Oil
- TEMPERATURES: Saturated and Superheat up to 1,050°F
- High service factors for severe duty applications
- High steam pressure and temperature applications
- Adaptability to unique fuels
- Quick ramping capabilities throughout the load range
- Flat superheater curve over the load range
Stocking Program
- Many Units of Various Sizes and Types Available for Immediate Shipment
- New and Reconditioned Units Available
- Matching Auxiliary Equipment in Stock
Furnace
- Water Cooled Membrane Wall Construction (Including Front and Rear Walls as Specified)
- Appropriate Heat Releases for the Application
- Sized for Flame Dimensions to Achieve Best Possible Emissions
- Minimal Refractory to Reduce On-Going Maintenance
- Fully Accessible for Inspection
- All Tubes Connected Drum to Drum with No Intermediate Headers
Drums
- Ligament Efficiencies and Corrosion Allowances that Meet or Exceed ASME Code
- Up to 3 Stages of Internal Moisture Separation for Most Stringent Steam Purity Requirements
- Internal distribution piping to provide positive circulation
- Diameters up to 54″
Superheater
- Both Radiant-Convective and 100% Convective Available
- Assemblies Completely Self-Supporting (No Intermediate Support Brick Required)
- All Elements of Equivalent Length Ensuring Balanced Flow
- Conservative Velocities Inside Tubes Assure Positive Cooling at All Loads
- Fully Drainable
Engineering
- Designs Specific to Client
- Requirements that Meet or Exceed All ASME Codes and ABMA Guidelines
- Implements Most Appropriate Accessories to Ensure Compliance to All Performance Guarantees
- Nearly half a century of Empirical Data Collected on Operation of Our Rental Fleet
