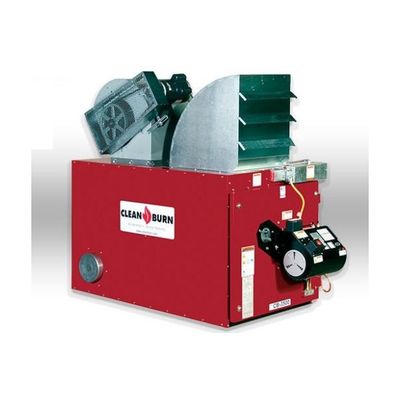

Clean Burn - Model CB-3500 - Industrial Grade Waste Oil Furnace

FromClean Burn, LLC

SHARE

The Clean Burn Model CB-3500 is an industrial grade waste oil furnace for service facilities with four or more bays and where larger quantities of waste oil are generated or collected. The CB-3500 generates approximately 350,000 BTU/hr and is UL listed for use as either a unit heater or central (ducted) furnace. A Clean Burn Distributor is the expert you want for furnace selection and installation.

Most popular related searches

waste oil furnace

circuit breaker

waste combustion

industrial furnace

combustion burner

Engineered from the ground up to burn waste oils
Patented heat exchanger generates more heat
Unique non-welded flue tubes for longer service life
Advanced burner preheats oil to optimize combustion
Swing-away burner and door make service easy
Longest cleaning interval of all units in its class
Lower stack temperatures, higher heat output
Automatic flow control means no fuel adjustment required
Ideal for unit heating or with a Clean Burn Recycling Center
Unequaled service and support from Clean Burn Distributors

MODEL CB-3500: SPECS.

*Maximum BTU/hour: 350,000 (102 kW)
*Maximum oil consumption: 2.3 GPH (8.2L/h)
Fuels:

Used oils: Crankcase,ATF, hydraulic
Fuel oils: #2, #4, and #5 fuel oil

Air flow output (CFM):

Unit heater 4200
Central furnace (ducted)
0.25 SPWC (in.) 4000
0.30 SPWC (in.) 3800

*Air compressor required: 2.0 CFM @ 25 PSI (3.4 m3/h @ 1.7 bar)
Stack Size: 8 inch dia.(20cm dia.)
Furnace Dimensions, Assembled: 74” L x 35 W x 61 H (188cm x 89cm x 155cm)
Approx. Weight (uncrated): 836 pounds (379 kg)
Electrical Requirements: 230 VAC 60 Hz, single phase, 30 A circuit breaker
*Values indicated above are nominal. Actual values will vary depending on fuel and installation.
