ATTSU - Model RL Container -Industrial Steam Boilers

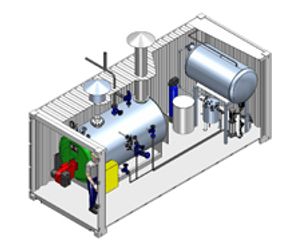

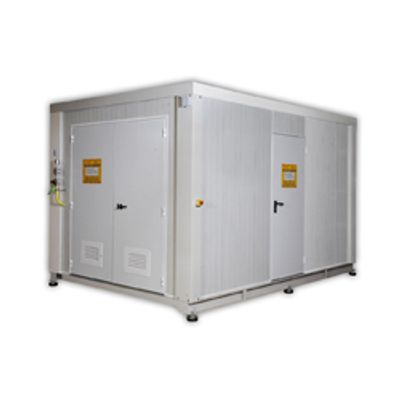

Container model is a mobile boiler room with the measurements of a 20-feet Standard sea container or an insulated container made to order, ready to connect and operate. The container is equipped with all the elements of a complete boiler room with a boiler RL model including water treatment equipment, flash vessel and all the indoor water, steam, condensate return and electrical installation and pipes.
Most popular related searches
steam boiler
industry steam boiler
industrial steam boiler
boiler room
electrical installation
fuel tank
industrial steam
boiler pump
industrial boiler
burner
Features of the facility within the container:
- Boiler RL model from 50 to 2,000 kg / h according to customer needs.
- Water treatment equipment WTC model adapted to the container and boiler model chosen.
- Flash vessel DF model installed according to the boiler chosen.
- Dimensions:
- Length : 6060 mm.
- Width: 2,440 mm
- High : 2,600 mm.
- Access door from the front (side burner) dual blade and side of a single sheet.
- The marine type container is prepared for such facilities, with high resistance to corrosion, shock, and loads.
- Fireplace built in stainless steel plate with single-wall flashing and hat.
- Outside driving of the safety valve.
- Aeration pipes from the boiler and condensate deposit in the water treatment equipment to the outside of the container, constructed with stainless steel tube AISI-316.
- Stainless steel pipes AISI-316L in various diameters for conducting purging of the boiler feed pumps, general line of steam, condensate return line ...
- Connecting the overflow from the water treatment equipment to the outside of the container.
- Possible to incorporate within the fuel tank of 1,000 liters of double-walled, with accessories and suction and ventilation tubes on the model of the boiler.
- Hardwood floors, on the steel structure.
- Painted green ATTSU or color according to customer needs
