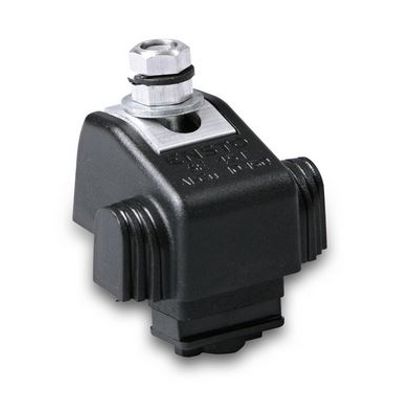

Ensto - Model SE45.1 -Insulation Piercing Connector
FromEnsto Group
The SE45.1 connector is intended to connect a surge arrester to insulated aluminium or copper conductors up to 1000V AC. Design of connector enables hot line installation without peeling insulation from conductor.
Most popular related searches
- High resistance to climatic stresses
- Optimised electrical performance
- Long creepage distance
- Maintenance-free
Dimensions
- Weight :0.1 kg
- Conductor diameter :6.8 ... 18.5 mm
Certificates
- Standards :EN 50483-4:2009
Features
- For conductor size :10-150
Mechanical
- Tightening torque Nm :18 Nm
ETIM
- ETIM Class :EC001062
- Nominal cross section main conductor, SM :10 ... 150 mm²
- Material main conductor :Aluminium/copper
- Terminal insulated :Yes
- Clamping channel opening main conductor :Closed
- Clamping channel opening branch conductor :One side open
- Surface protection :Tinned
- Type of connection :Insulation piercing connector IPC
