Sferasol - Model SF-S -Integrated Storage Collector Solar System

Product

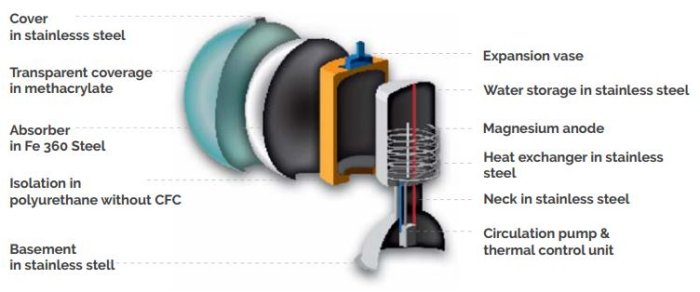

Integrated Storage Collector SFERASOLTM made by:

• 2 external metachrylate hemispheres
• 2 internal steel 09/10 P06 hemispheres
• 1 water tank in INOX AISI 304 stainless steel
• 1 heat exchanger in INOX AISI 304 stainless steel, length 8,20 m
• 1 INOX AISI 304 stainless steel basement
• 1 30W – 1.300 rpm Circulation Pump
• 1 Electronic Control Unit

System Classification

• System Model: SFERASOL
• System Code: SF-S
• Classification: forced circulation, integrated with storage tank

Collector System

• Nr. of Collectors: 1
• Gross Collector Surface: 4,524 m2

Collector Data

• Type:
• Spherical
• Gross total surface: 4,524 m2
• Aperture surface: 1,130 m2
• Net total surface: 0,891 m2
• Nr. of coverages: 1
• Coverage Material:  Merthacrylate
• Coverage thickness: 3 mm
• Structure material: INOX AISI 304 Stainless Steel
• Net mass: 130 kg

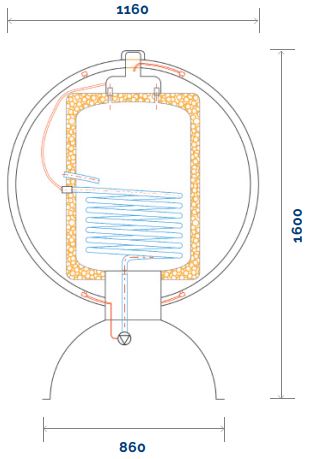

• Outer dimensions: 1200*1200*1600 mm

Absorber

• Material: 09/10 P06 steel
• Surface treatment: black selective paint - high opacity
• Connections: copper pipes Ø 8mm

Thermalconvector fluid

• Type: mixture of monopropylene glycol + water
• Antifreeze protection: YES

Storage

• Capacity: 150 liters
• Storage material: INOX AISI 304 steel
• Dimensions:  Ø 600mm – H 850mm
• Isolation polyurethane 45 kg/m3
• Isolation thickness: 50 mm
• Heat Exchanger: Ø 27mm - INOX AISI 304
• Length: 8200 mm
• Operating pressure:  system pressure – max 6 bar

• Protection against Corrosion: Magnesium anode, L 600mm
• Electric REsistance (optional) . 400W – 1200W

Connections

• Hot water: Ø ½” R
• Cold water: Ø ½” R

100% produced in Italy.

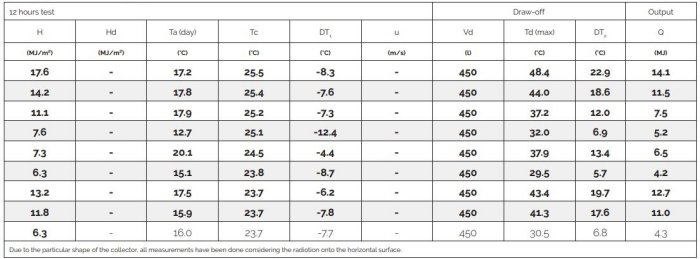

ENEA Certified according to norm
UNI EN 12976-2:2006

• Geolocalisation of test site: Lat: 40° 09’N - 16°38’E (ENEA Trisaia)
• Positioning & orientation: towards SOUTH - 0° horizontal inclination
• Test date: October

Easy to install, efficient, economical and futuristic, Sferasol, represents a new frontier in alternative heating.

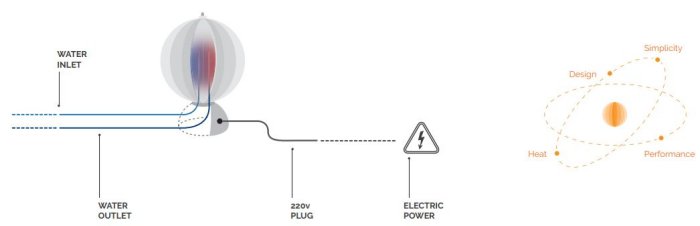

It is a fully integrated system needing only two hookup tubes (nlet and outlet for water) and a 220v outlet making your new solar system as easy to install as a washing machine.

Within the Sferasol, is a 150 liter sanitary hot water tank, a thermal exchange unit, a pump and control system.

It requires no maintenance.

The Manufacturer Sferasol Energy S.r.l. address: Via G. Pascoli, 1 – 10060 Scalenghe (TO) – ITALY declares under its own responsibility that the thermal solar collector named “Sferasol”SF-S model is conform to essential specificaitons of safetyaccording to the following direttives:

• 2006/42/CE (machines);
• 2006/95/CE (low voltage);
• 2004/108/CE (ECM).

The product is supplied with CE mark and user manual. The person authorized to fill in the technical data sheet is the legal representative of Sferasol Energy S.r.l. being in the Company seeds.
