Intereng - Model PGT 20 - VLF Test Generators

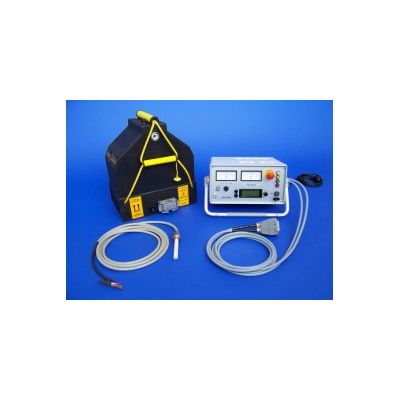

The portable cable test set PGT 36 is used for testing medium voltage cables with extruded insulation (VPE, PE, EPR insulation) and nominal voltage up to 12/20kV in accordance with DIN VDE 0276/620 (CENELEC HD 620). The cable test set works according to the VLF test method. It uses a very low frequency voltage (VLF) of 0.1 Hz and max. 36 kV.
-
Most popular related searches
Features:
- compact portable 36kV VLF cable test set
- easily transported by one or two persons
- simple operation
- menue-driven operation in English/German, multilingual option
- fully automatic test sequence
- timer with automatic switch-off
- breakdown detection
- fault time detection
- direct high voltage measurement
- protective earthing circuit
- protective circuit / indication in accordance with VDE 0104
- option: leakage current measurement during VLF test
