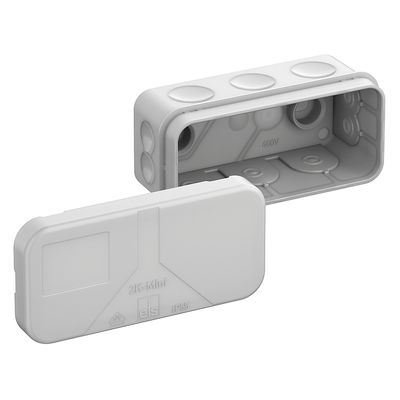

Gunther - Model 2K-Mini-L -Junction Box

Electrical characteristics

• Rated insulation voltage AC: 400 V
• Max. conductor cross section: 2,5 mm²
• Protection class: II
• Type of protection: IP55
• Terminal type: none
• UL Type Rating: not specified

Colours

• Base unit colour: grey
• Cover colour: grey

Dimensions

• Width: 89 mm
• Length: 43 mm
• Height: 38 mm
• Inner length: 33 mm
• Inner width: 79 mm
• Inner height: 33 mm
• Weight: 0.0305 kg

Material characteristics

• UV-resistant: no
• Halogen free: yes
• Flammability class according with UL94: HB
• Glow-wire flammability according to EN 60695-2-11: 650 °C
• Max. number of terminals per cross section acc. to DIN VDE 0606-1
• max. amount of terminals at 1,5²: 5
• max. amount of terminals at 2,5²: 3

Max. number of wires per cross section acc. to DIN VDE 0606-1

• max. amount of wires at 1,5²: 15
• max. amount of wires at 2,5²: 9

mechanical properties

• for sealing range min: 2 mm
• for sealing range max: 14 mm
• Impact strength: IK07
• Sealable: no
• Type of fastening: Wall/ceiling mounting
• Fastening: internal fixing points

Ambient conditions

• max. relative humidity 25°C: 95 %
• max. relative humidity 40°C: 50 %
• Min. ambient temperature: -25 °C
• Max. ambient temperature: 40 °C
• 24h ambient temperature: 35 °C
• Installation location: Indoors

Sales Information

• EAN: 4013902642472
• ETIM Class: EC002600
• Custom tariff number: 85389099

Material

• Base unit material: Polypropylene
• Cover material: Polypropylene

Entry material: Thermoplastic elastomer

• Sealing material: Thermoplastic elastomer

Certificates

• Test mark: VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)
