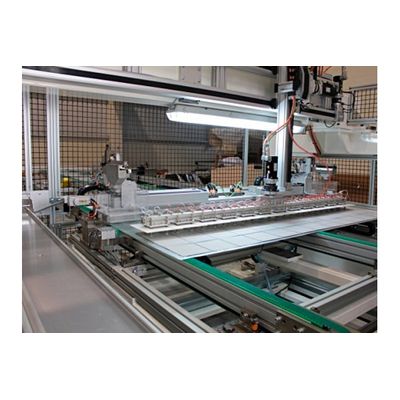

Mondragon Assembly - Layup Stringer
The layup manipulates and inspects the strings coming from the Tabber and Stringer using artificial vision and accurately positions them over the glass + EVA. Mondragon Assembly’s different layups adapt to the capacity of each Tabber&Stringer, from the compact machine with layup integrated into the customizable, to the GTS 18 with 6 axle robot, providing an extremely broad variety of options for our clients.
Most popular related searches
- Max. panel length : 2000mm
- Min. panel length : 1400mm
- Max. panel width : 1100mm
- Min. panel width : 600mm
- Máx. panel / h : 40 (60 cells)
- Camera pixel count : 5 Mpx (only with string check camera option)
- Reworked strings : 2 positions
- Máx. no-OK positions : 3, programmable
- Ends cut range : 8-30 (only with cutting station option)
