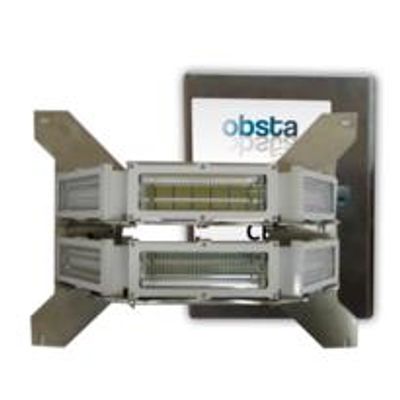

Obsta - Model OFH-180-WW-48 - Led High Intensity Light
FromObsta
Led high intensity type B 48VDC - Compliant with high intensity type B according to ICAO annex 14 chapter 6 edition 2013 - To be used on the support of the transmission line in case it is not possible to install day warning spheres on the cables (3 levels of 2 lights on opposite side of the tower supporting power cables)
Most popular related searches
Flashhead
- 6 led projectors coming with connectors
- Aluminium and glass enveloppe
- No losing parts and no special tools required to remove projectors
- Molded junction box with connectors
Power supply
- `Weather tight` stainless steel 316L power cabinet enclosure
- 6 independant power supplies providing a high redundancy level
- Test button
- synchronisation of the flashes sequentially; first the middle lights, second the top lights and last, the bottom lights
- Surge protection included
- Vertical beam spread >3°
- Effective light output twilight mode at 0° on site 20 000cd (white)
- Horizontal beam spread 360° with minimum 2 flashheads on opposite side
- Effective light output night mode at 0° on site 2000cd (white or red)
- Flash per minute 40
- Effective light output day time at 0° on site 100 000cd (white)
- Color day/twilight time white
- Color night time white (or red in option)
- Size of the light 420mm (height) x 580mm (width)
- IP degree IP66 per projector
- Wire cross section from 1 to 4 mm²
- Size of the power supply 400mm (height) x 300mm (width) x 200mm (dept)
- Operating temperature -40/+55°C
- Wiring Entry of cable by glands nickel plated brass and connection by terminals
- Average power consumption 120W (day time)
- Power supply 48VDC -10%/+15% (max current 14A)
