Obsta - Model OFH-120-WW-240 - Led High Intensity Light
FromObsta
Led high intensity type A - Compliant with high intensity type A (verified by the Civil Aviation laboratory STAC in France) - for night mode, red mode option in medium intensity type B or C
Most popular related searches

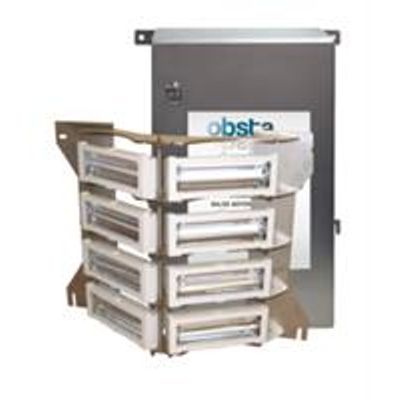

Flashhead
- 8 led projectors coming with connectors
- Aluminium and glass enveloppe
- No losing parts and no special tools required to remove projectors
- Led driver in stainless enclosure close to the flashhead, AC to DC converter with control in the power cabinet
Power supply
- `Weather tight` stainless steel 316L power cabinet enclosure
- 8 independant power supplies providing a high redundancy level
- Test button for day, twilight and night
- Alarm dry contact NC and NO activated in case 1 or 2 led projectors not operating
- Surge protection included
- Master/slave configuration for multiple lights synchronisation or through external controller with optical cable
- Horizontal beam spread 60° with 3 lights around the obstacle
- Effective light output day time at 0° on site 200 000cd (white)
- Vertical beam spread >3°
- Effective light output twilight mode at 0° on site 20 000cd (white)
- Effective light output night mode at 0° on site 2000cd (white or red)
- Flash per minute 40
- Color day/twilight time white
- Color night time white (or red in option)
- IP degree IP66 per projector
- Wire cross section from 1 to 4 mm²
- Operating temperature -40/+55°C
- Wiring Entry of cable by glands nickel plated brass and connection by terminals
- Power supply 110VAC to 240VAC +/-10% 50/60Hz
- Average power consumption 160W (day time)
