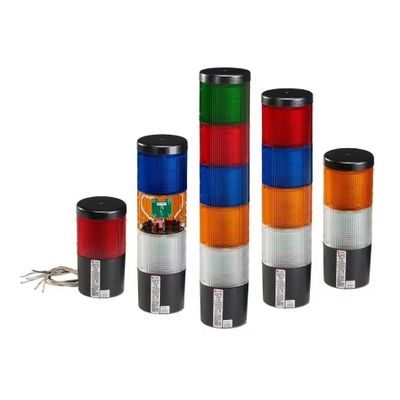

Federal Signal Litestak - Model LSLD -LED Status Indicator
Federal Signal’s Litestak® Model LSLD modular indicator light system allows the user to combine up to five interchangeable lamp units with a base power unit. Modules are sold separately for a truly customized indicator. LED light output coordinates with the module’s impact-resistant polycarbonate lensing. LED lamps consume less power, operate at a lower temperature, and are remarkably resistant to vibration, which makes them perfect for use in heavy-duty, high vibration applications.
- Available in 24 Vdc and 120 Vac
- 50,000 hour, vibration-resistant LED lamp
- Surface mount and integrated 3/4-inch NPT pipe mount
- Five lens colors: Amber, Blue, Clear, Green and Red
- Indoor use only
- Type 1 enclosure
- CSA Certified
- UL and cUL Listed
An optional Sound Module (Model LSH) can be added to the top of the Litestak column to create a dual purpose audible/visual status indicating signal. In applications where a single loud tone is all that is necessary, the LSH piezo-electric horn is a perfect audible addition.
Litestak is a versatile system that allows the user to select either steady burn or flash. A flasher is included on the 120VAC LSB unit only but can be purchased separately for 24VDC models. The Litestak base unit can be either surface mount or 3/4-inch NPT pipe mount. All Litestak models should be mounted base down.
- Enclosure Rating: Type 1
- Environmental Rating: Ordinary Location
- Lamp Life Hours: 50000
- Light Source: LED
- Warranty: Five-year
