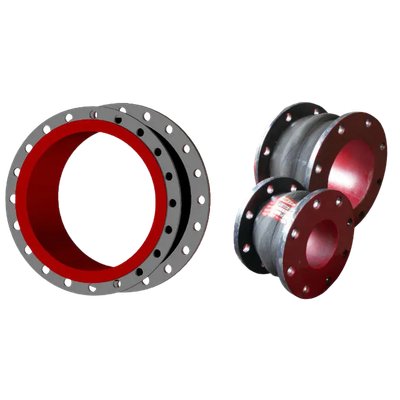

Townley - Model 9000 Series - Lined Connector
Designed and manufactured with a wear tube of 1/2″ Towniprene® urethane, our heavy-duty Series 9000 expansion style connectors withstand abrasive and corrosive fine feed slurries in suction or discharge service, wherever traditional rigid joints are used.
- Steel spring wire and fabric reinforcement
- Integrated steel nipples
- Not affected by thermal excursions
- Solid arch dampens pump vibration to reduce in-plant noise
- Available up to 150 PSI
- Available in concentric, eccentric & off-set designs
- Can replace rigid pipe in many applications
- Available with reducing dimensions
- 2″ to 84″ ID
- Face to face up to 24″
- Continuous Towniprene® wear tube terminates on flange face
- Easily seals misaligned connections
- Ozone resistant cover assures durability
- Excellent for fine-feed
Series 9000 lined connectors can be constructed in a variety of configurations to suit your application. This is especially helpful when replacing the rigid pipes or in older circuits where settling has occurred.
Available in a variety of custom styles to suit your application. These include concentric, reducing, eccentric, tap & drains, solid arch, rotating couplings, with control rod, without control rod, and various pressure ratings.
Series 9000 connectors are especially suited to compensate for torsional, lateral, angular movements, elongation, and compression that is normally found in pipes being used in mining, and power plant transportation of slurries.
