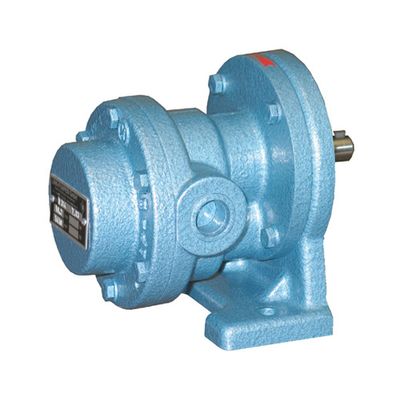

Linn - Model D Series -External Gear Pumps with Mounting Bracket
FromLinn-Pumpen GmbH
Self-priming external gear pumps are designed for industrial applications. Positive displacement pumps with a wide range of capacities. Suction- and pressure-connections Whitworth pipe threads - opposite 180° (Series D5xx also available with SAE-flange).
Most popular related searches
Example of liquids suitable for transport
Pure, non-explosive liquids, not corrosive against pump materials, without any solids. The liquids to deliver, must have lubricating characteristics. Oil, mineral oil, synthetic oil, adhesives, sealants, polymers, diesel, paints, inks and many more
Operating conditions
- Liquid temperature: -20°C up to +60°C (NBR)
- Ambient temperature from -20°C up to +40°C
- Operating pressure max. 100 bar
- others on request
Drives
For example: hydraulic motor, electric motor drives without axial / radial forces on the drive shaft
Industrial applications, for example:
- Lubrication systems, coolant feed in machine tools, heat transfer, test bench and many more.
