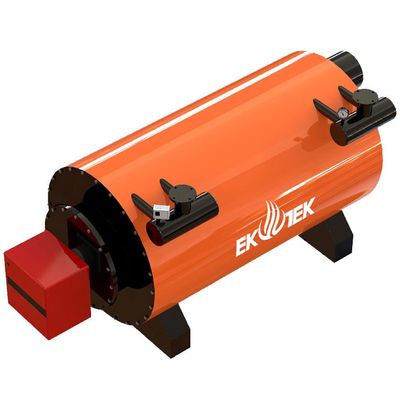

Ekotek - Model PHOENIX Series -Liquid and Gas Fired Thermal Oil Boiler

• Our company is EKOTEK. Trademark registered and controlled and audited by ISO 9001: 2015 quality management system.
• Module b (project)+ module f (manufacturing) for each product is certified according to TSE Standard with CE certificate.
• Penetrating and radiographic tests are performed on our resources by the authorized company.
• Serpentine pipe welds of our Thermal Oil Heater Boilers are made with argon welding and are subjected to Radiographic Test after welding operations.
• Welding operations are carried out by certified welders in accordance with approved WPS and WPQR. Welding processes are subjected to radiographic testing at the rates stipulated by the standards.
• The products used in production are all certified materials.
• Our products are produced in accordance with TS EN 12952-3 Standard and 2014/68 / EU Pressure Vessels Directive and have

CE certificate.

• Our products are manufactured accordingto EN288. EN287-1 using P 265 GH and P 355 GH quality boiler sheet.
• Our products are produced using boiler pipes made of steel of higher quality, P235GH in TS EN 10217-2 norm.
• We recommend that you purchase heat transfer oil suitable for the temperature of the boiler.
• Thermal oil heater boilers are used in industries such as metal and mineral processing, construction industry, oil and chemical industry, paper and cardboard industry, wood and forest products industry, food and beverage industry, textile industry, soap and detergent industry.
• Thermal Oil Heater boilers correct the pressure loss of the system.
• SUPPORT FOR CENTRAL SYSTEM GAS SUPPLY FROM ENGINEERING COMPANIES.
• DO NOT FORGET TO CONNECT PE MAX: 300 M BAR GAS LINE FOR THE BURNER.
• DO NOT FORGETTO HAVE A CE CERTIFIED FLUE SUITABLE FOR NATURAL GAS. DONT FORGETTO TAKE CHIMNEY OFFER SUITABLE FOR NATURAL GAS FROM OUR COMPANY.
• It has the flexibility to work in harmony with different combustion systems

PHOENIX SERIES
INFORMATION AND MATERIAL QUALITY

• It operates at low pressure at high temperature.
• Package system and assembly can be made in our thermal oil heater boilers. Please contact our company.
• Heat transfer oil used in the system is used for petrification, calcification etc. in the boiler. It can be used for a long time as it does not cause any negative effects.
• There is no need to use any conditioning unit in the heat conduction oil.
• No freezing occurs in the installation under normal conditions.
• Thermal Oil Heater Boiler can be used as a heating fluid in the production of Steam. Hot Water, Boiling Water.
• Thermal oil outlet temperature is controlled by PID controller.
• Thermal oil return temperature is controlled by digital thermostats.
