PermAlert - Model PHLR Series - Liquid Hydrocarbon Probe
From Sensors & Probes
The PHLR series probe is a resettable hydrocarbon probe that detects hydrocarbon liquids in interstitial spaces of tanks and pipes, sumps and other containment areas where hydrocarbon liquid can accumulate to a depth of ¼” or more.
-
Most popular related searches
Key Features
- Durable Design
- Resettable Probe
- Fast Respond Time
- Relay Output Capable
- Compact Design
Product Overview
PermAlert is the leak detection and location systems technology specialist since 1988. We work with customers to address their most complex leak detection challenges and to deliver innovative business solutions that bring higher value to every facility.
PermAlert offers continuous monitoring, multi-level alerts, system logging, BMS integration, and cost savings to the data centers, oil & gas, commercial buildings, and healthcare industries.
No matter where the leak location is, we are confident that our stability as a company, team of technical expertise, and international network are at your disposal to help minimize leaks and to maximize asset protection.
The PHLR series probe is a resettable hydrocarbon probe that detects hydrocarbon liquids in interstitial spaces of tanks and pipes, sumps and other containment areas where hydrocarbon liquid can accumulate to a depth of 1/4'° or more.
The probes will detect liquid fuels (gasoline, diesel fuel, jet fuel, crude oil, etc) and many hydrocarbon solvents, but ignore vapors, thus eliminating false alarms due to vapors. The unique design of the probe employs reusable sensor elements, which swell upon exposure to hydrocarbon liquids and activate a sealed switch. The sensor elements can be easily removed, cleaned and reused numerous times after exposure. This enables the system to be quickly reset after testing.
The standard PHLR probe is designed for non-pressurized applications. The PHLR-P probe is available for pressurized locations. This probe is ideal for typical sealed, containment piping systems that are maintained under pressure with a nitrogen or air blanket.
Easy installation - The PHLR probe slips into the end of a 3/4'°Schedule 40 PVC pipe. The pipe can then be mounted in any orientation, horizontal or vertical. The PHLR-P probe slips into a 3/4' PVC coupling and must be mounted vertically.
A PHLR series probe is available for the PAL-AT or LiquidWatch systems.
The PHLR series can easily be connected to a PAL-AT cable 'sensing string' providing increased utilization of the PAL-AT capabilities. Each probe assembly for PAL-AT includes a probe integrator with 60 ft (18 m) of jumper cable to connect to the sensing string, and 20 ft (6 m) of lead cable to attach the probe to the integrator. The PHLR series for LiquidWatch includes a 1/2' NPT cord grip and a probe adapter incorporated in the 20 ft (6 m) long probe lead wire. Additional lead wire is used if necessary.
*Long exposure to some aggressive solvents like ac...

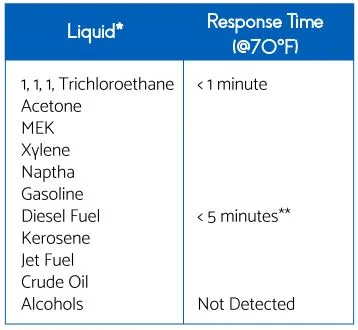

*Long exposure to some aggressive solvents like acetone or xylene may soften the epoxy sealing the probe, requiring probe replacement
** Response time at room temperature. Response times will be longer or lower temperatures,
PAL-AT Note
- A '-S' probe must be connected in the first 5,000 ft (1,500 m) of the sensing string.
- A '-L' probe must be connected more than 5,000 ft (1500 m) from the PAL-AT panel.
- Each probe includes junction box, two connectors and three 1/2' NPT cord grips.
Permalert Business Benefits
24X7 Monitoring
Continuous monitoring of critical infrastructure and equipment.
Multi-Level Alerts
Capable of detecting multiple and growing leaks while maintain continuous operations.
System Logging
Every leak detection event is recorded in system log to allow full audit trail and ease of troubleshoot.
BMS Integration
Support BMS integration via RS485, Modbus, BACnet and dry contacts.
Cost Savings
Minimize downtime and damages to critical infrastructures. And reduction of insurance premium.
