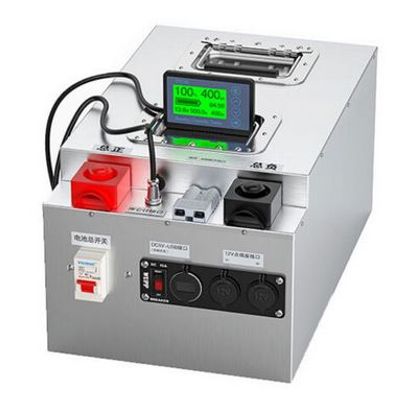

ELB - Model 24V 100Ah LiFePO4 RV - Lithium Batteries
This 24V 100Ah LiFePO4 Battery are specially designed for RVs, and the batteries offer BMS controlled safety, long life,fast-charging performance, also the BMS embeds smart balancing algorithms that control all cell voltages, making sure they are constantly at the same voltage level, optimizing battery capacity.
- MOQ: 10units
- Delivery time: 20-35 working days
- Capacity of supply: About 5 million KVAH/year
- OEM/ODM: Acceptable
- Factory Audit Address: Dongguan, China
- Product Delivery Port: Shenzhen, China
- Delivery terms: EXW, FOB, CIF
ELECTRICAL SPECIFICATION
- Nominal Voltage: 25.6V
- Nominal Capacity: 100AH
- Stored Energy: 2560Wh
- Resistance: 30 mΩ
- Self Discharge Rate:
- Maximum Continous Charge Current: 100A
- Maximum Continous Discharge Current: 100A
- Charge Cut-off Voltage: 20 V
- Discharge Cut-off Voltage: 29.2V
- Cycle life(25°C): >4000 times@80%DOD
MECHANICAL SPECIFICATIONS
- Dimensions (Inches): L15.7 x W8.3x H9.5
- Weight: 57lbs
- Protection Level: IP65
- Case Material: Commercial Grade Steel
- Communication Protocol: RS485/ CAN
TEMPERATURE SPECIFICATIONS
- Discharge Temperature: -20 to 55°C
- Charge Temperature: 0 to 50 °C
- Storage Temperature: -20 to 60 °C
OTHERS SPECIFICATIONS
- Short Circuit Protection: Automatically recover after removal of short
- Life Expectancy (years): 10 years at one cycle per day
The Main features of ELB 24V 100Ah LiFePO4 RV Battery:
- 24V 100Ah Lithium battery.
- Support 1C quick discharge/charge.
- Super safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion due to high impact, over-charging or short circuit situation.
- Battery Management System (BMS) controls the parameters of the battery to provide optimum safety by protecting against over-charging and over-discharging.
- BMS enhanced design balances the battery cells, optimizing battery performance.
- Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining high energy capacity.
- Faster charging and lower self-discharge.
- Up to 10 times more cycles than lead acid batteries.
- Compact and only 40% of the weight of comparable lead acid batteries
About ELB Energy Group
ELB is a professional lithium battery manufacturer, who can provide battery OEM and ODM services for all kinds of application, Such as
The main battery type included LiFePO4 batteries, Lithium ion batteries, special battery, Battery Cells etc.
Also ELB provide different battery cells models, main included,
