NetMeter - Model 3P - Load Current Transformers (CTs)

SHARE

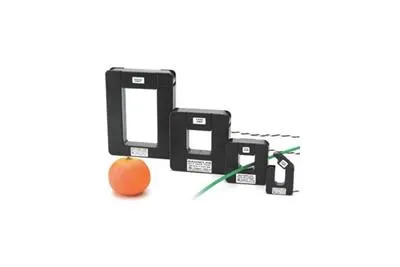

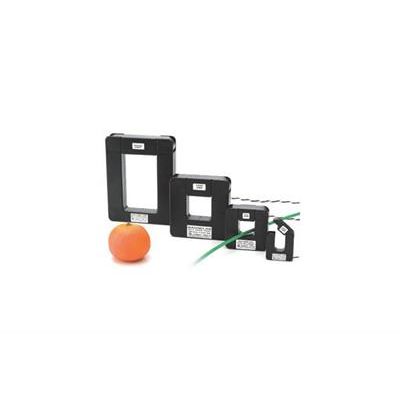

The NetMeter-3P requires current transformers (CTs) to detect the load current. CTs are chosen for your application based on: The current rating of the circuit to be monitored. The physical size of the conductor or bus bar that each CT will be attached to. Ease of installation: "split core" CTs allow for installation without having to physically disconnect.

Most popular related searches
load current
current transformer
electrical energy module

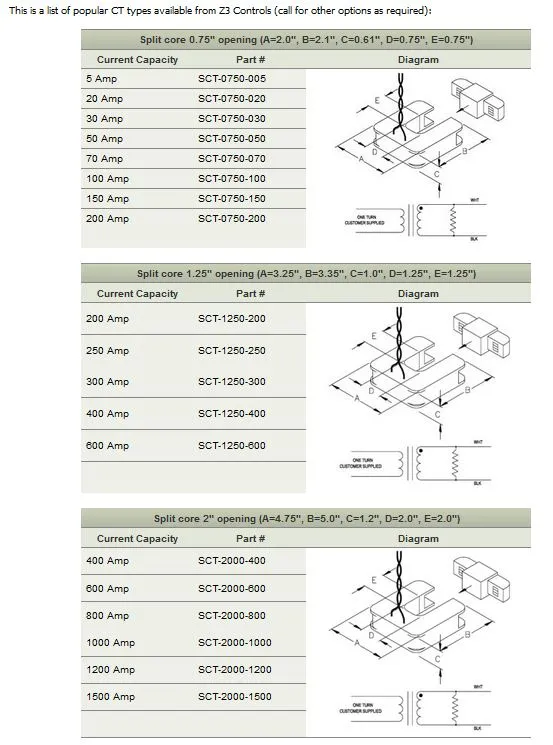

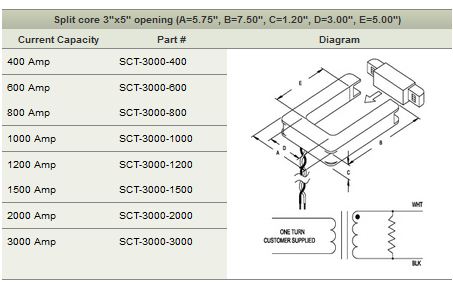

CTs are available from Z3 Controls and other vendors.

The NetMeter typically uses split core CT`s that include a burden resistor and output 0.333VAC at rated output (this is one of the most popular CT types).

Current mode CTs (unburdened CTs) must be used with an appropriately sized burden resistor in order to be used with the NetMeter. Without the proper burden resistor, current mode CTs will damage the NetMeter. Current mode CTs produce dangerous voltages when unburdened.
