Zeeco - Model AK -Low Emissions Round Flame Burner

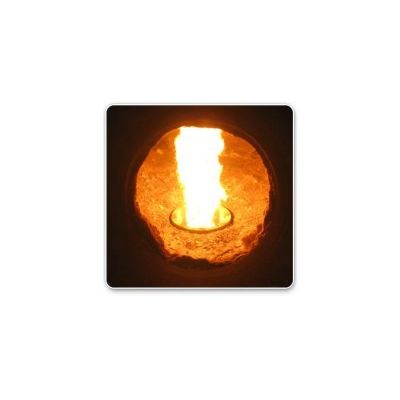

The Zeeco AK Staged Air Low Emissions Burner is a round flame combination oil and gas burner.

Most popular related searches

Stable flame over a wide range of conditions
High turndown of 5:1 or greater for most cases
No stabilization metal used in the burner throat
Low maintenance cost since tip mass is small and exposed into firebox less than 1" (25 mm)
Reasonable cost and great value
Combustion air dampers are controlled by gears for precise control
Bearings are used for the combustion air damper shafts for smooth, precise operation
Configurations available: plenum mounted or individual wind-box
Mounting configurations: horizontal and vertical
310 Stainless Steel (Type HK) gas tips

Burner Model: AK Combination Oil & Gas Staged Air Burner
Fuels: Combination Oil & Gas
Description: Round Flame Low Emissions Combination
NOx Reduction Method: Staged Air
Predicted NOx Emissions Range (Natural Draft) with gas fired: 50 ppmv to 95 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
gas fired: 80 ppmv to 160 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 2 oil fired: 80 ppmv to 120 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 2 oil fired: 120 ppmv to 180 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 6 oil fired: 160 ppmv to 220 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 6 oil fired: 215 ppmv to 280 ppmv
Combustion Air Induction: Natural, Forced, Induced & Balanced Draft
Mounting Options: Up-fired and Side-fired
Natural Draft Heat Release Range: 1 MM to 20 MM Btu/hr [0.293 to 5.860 MW]
Forced Draft Heat Release Range: 1 MM to 50 MM Btu/hr [0.293 to 14.65 MW]
Turndown: 5:1 gas & 3:1 oil
Typical Excess Air Range: 10% to 25%
