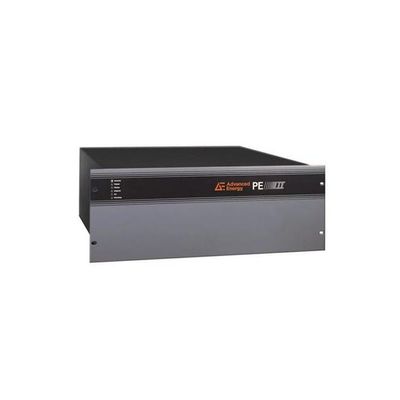

Advanced-Energy - Model PEII Series -Low-Frequency Power Supplies System
Low-Frequency Series with Enhanced Arc Control and Internal Load Matching for 40 kHz Reactive Sputtering Applications. The PEII series of power supplies are the trusted standard for dual-magnetron sputtering, as an effective vacuum cleaning tool, and in multiple PECVD applications.
- Reliable water-cooled design
- Delivers tight output regulation on power, voltage, or current, with a measurement accuracy of 1%
- Compatible with a programmable logic controller (PLC)
The low-frequency PEII series provides 40 kHz pulse width modulation (PWM). It features advanced arc control and internal load matching with outputs of up to 60 kW when units are combined — requiring no external hardware, such as transformers or tuners. The power supply also offers two distinct arc-handling circuits, and the floating output can be grounded on either side. PEII power supplies are water-cooled, are CE compliant, and include many optional accessories.
- Proven reliability enables maximum system utilization
- Accurate power, voltage, or current regulation
- Maximum flexibility and modularity
- Enhanced arc control
- Wide tap range
- 5 and 10 kW options (primary/secondary up to 60 kW)
- Internal load match (10:1 impedance range)
- Two distinct arc-handling circuits
- Efficient, compact, water-cooled design
- CE compliant
- Compatible with Advanced Energy’s LMII 10K matching network allowing higher voltage operation
