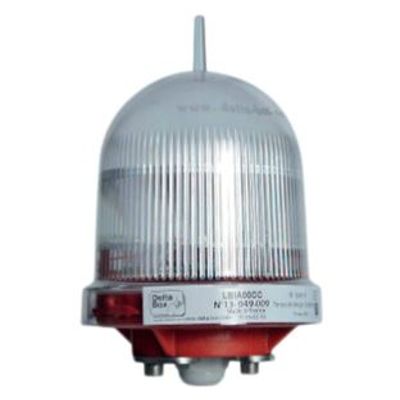

Delta Box - Model LEDEO BIA -Low Intensity Obstruction Light
The LEDEO BIA is a low intensity light based on multi-LEDs technology. Dedicated to a night beaconing (red steady burning), it is a long lifetime beacon (100 000 hours), with a very low consumption (<2W). The LEDEO BIA can be provided with a photocell for an automatic switch ON / OFF, and a dry contact for failure alarm. It can be solar power supplied for areas where it is difficult to bring power supply, and it is designed for an easy installation.
- Long life time > 10 years
- Multi-LEDs technology
- Low consumption < 2W
- Integrated photocell and dry contact (in option)
- No maintenance
- 2-year warranty
- DELTA BOX exclusive self-test when the photocell is integrated
Rules concerning aircraft beaconing are established by the ICAO (Annex 14, Chapter 6). Low intensity beacons can be installed on structures up to 45m in height. According to the rules, an uninterruptible power supply cabinet has to be installed to insure a 12 hours beaconing in case of power supply failure.
