Federal Signal StreamLine - Model LP3L -Low Profile LED Lights

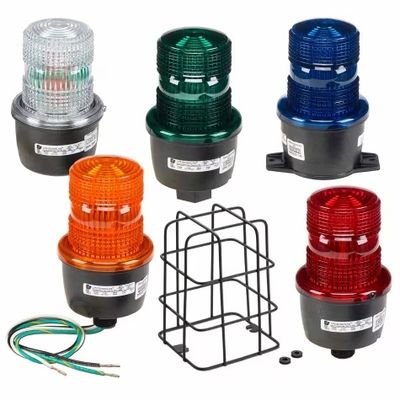

Model LP3L low profile LED light is offered in four mounting configurations: LP3PL with an integrated 1/2" NPT pipe mount, LP3ML features an integrated 1/2" NPT male pipe mount, LP3TL features a T formation base with 2 mounting holes for wall or flush mounting and the LP3SL features a three hole surface mounting configuration.
Most popular related searches
Models LP3ML, LP3SL, and LP3TL include a surface mount gasket to complete the Type 4X installation. An optional dome guard is available for use with the LP3ML, LP3SL and LP3TL when installed on a panel.
All models include the vibration resistant, double contact bayonet style 50,000 hour LED module.
Like all StreamLine® products, the LP3L is designed with OEM applications in mind.
- Available in 24 Vdc and 120 Vac
- T-mount (TL), integrated 1/2-inch NPT pipe mount (PL), 1/2-inch NPT male pipe mount (ML), or surface mount (SL)
- Five lamp/lens colors: Amber, Blue, Clear, Green, and Red
- 50,000-hour LED
- Screw-on lens
- Indoor/outdoor use
- Optional wire lens guard
- Type 4X, IP66 enclosure - LP3SL, LP3PL, LP3ML
- Type 4X, IP55 enclosure - LP3TL
- IP69K compliant - LP3SL, LP3PL, LP3ML
- PLC Compatible
- CSA Certified
- UL and cUL Listed
- CE and UKCA Certified
- Enclosure Rating: Type 4X, IP55, IP66, IP69K
- Environmental Rating: Ordinary Location
- Lamp Life Hours: 50000
- Light Source: LED
- Warranty: Five-year
