Cosmosolar - Model INB 120 – 300 -Low Profile Solar Water Heaters

Low profile solar water heaters | INB 120 – 300 with 316L HiMo stainless steel tanks.

Most popular related searches

Tank´s outer cover: aluminum foil, oven painted (Seaside Class) for protection in coastly enviroments.
Colour: RAL9006
Inner tank: from 316L HiMo strainless steel, 2.00mm thick
Closed loop mantel (jacket): as above, 1.2mm thick.
Insulation: CFC free expanded P.U. [52kgr/m³] 50mm thick.
Protection against electrolysis: with a magnesium rod ∅22mm, L = 500mm.
Electric back up: 1,5 to 4 kW with safety thermostat, according local regulations.
Special Heat Exchanger: Optionally, a special coil can be added for connection with heating system or heat pump, avoiding this way the use of the electrical element (when the other source is working).
Special diffuser ENERGON: a specially designed diffuser for an up to 30% better perfomance.
Collector`s frame: made by aluminum (Al Mg Si 0.5) oven painted with electrostatic painting (Seeside Class) for bigger protection in all types of different external climatic conditions.
Titanium selective absorber: specially treated in vaccum, of high absorption and low trasmittance, welded onto the pipes with laser which ensures the immediate trasmissivity of thermal energy.
Absorption coefficient: α ≥ 0.95 ± 0.02
Emmision coefficient: ε ≤ 0.05 ± 0.02
Glass cover: safety type, 3.2mm thick, with trasmissivity of τ ≥ 0.90, low iron, selected for ensuring the maximization of the performance of the collector.
Support base (mounting structure): made from hot galvanized steel.

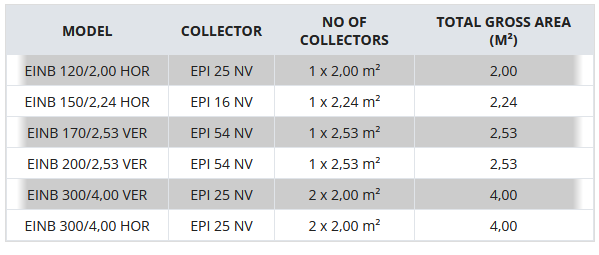

Techical Characteristics
