Komax - Model TS1500 - Low Voltage Testing System

SHARE

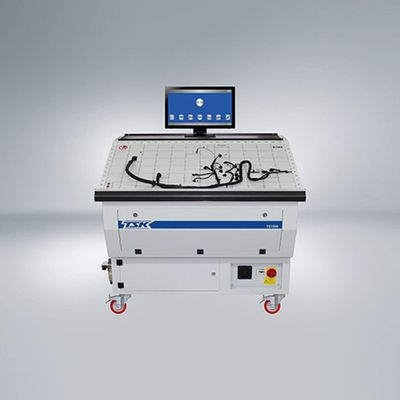

The TS1500 test system is suitable for testing and quality assurance of medium and large wire harnesses in the cable assembly and automotive supply industries. The ergonomically designed TS1500 is available in a variety of sizes. With its extensive functions, it is the bestseller among the test systems of medium and large wire harnesses. The test system is characterized by an optimal and ergonomic test grid utilization with an inclination of 20°.In the smallest possible space, a maximum number of test adapters with variable positioning can be attached. The easy-to-use interface and convenient adaption possibilities make testing efficient and safe. Other models and sizes are available on request. The TS1500 test system can be combined with all cable testers and can be configured according to customer requirements.

Most popular related searches

low voltage test

voltage testing system

power supply unit

DC power supply

low voltage system

TS1500 800x600 mm

Metric

Dimensions/height min.: 1100 mm
Dimensions/height max.: 1150 mm
Dimensions/width min.: 950 mm
Dimensions/width max.: 1170 mm
Depth max.: 980 mm
Total weight, without test adapter (modules) approx.: 190 kg
Number of system segments: 1
Voltage (AC), input min.: 90 V
Voltage (AC), input max.: 260 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
power supply 1, voltage (DC): 24/12 V
power supply 1, current (DC) max.: 40 A
power supply 2, voltage (DC): 5 V
power supply 2, current (DC): 10 A
Total power, standard (depending on the number of power supply units) max.: 1500 W
Ambient temperature, operation min.: +10 °C
Ambient temperature, operation max.: +40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: +60 °C
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Operating height (feet above sea level) max.: 2000 m
Test grid width: 800 mm
Test grid depth, horizontal: 600 mm
Test grid area: 0.48 m²
max. number of test adapters (modules) to be installed for size100x100: 48
Test grid inclination, horizontal: 20 °
Maximum permissible load on the test grid: 1,1 / 100 g/cm²
Test points min.: 128
Test points max.: 640
Cable tester CT30ix: yes
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
Pneumatic connections min.: 40
Pneumatic connections max.: 80
