Komax - Model TS1500-ALU - Low Voltage Testing System

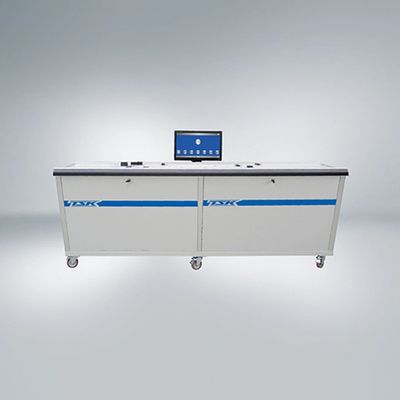

The TS1500-ALU test system with its extra broad testing grid of up to 2000 mm and more width is suitable for testing and quality assurance of medium and large wire harnesses. The ergonomically designed and proven TS1500-ALU is available in a variety of sizes. The testing grid surface can reach from 1000 mm width to over 2000 mm and make testing of longer cables more convenient. With its extensive functions, it is the bestseller among the test systems in the cable assembly and automotive supply industries. The test system is characterized by an optimal and ergonomic test grid utilization. The TS1500-ALU offers as all Komax Testing Systems an ergonomic work area (Test grid inclination 20°), variable positioning of the test adapters, a standardized interface and convenient adaptation. Other models and sizes are available on request. The TS1500-ALU test system can be combined with all cable testers and can be configured according to customer requirements.
TS1500-ALU 1000x400 mm
Metric
- Dimensions/height min.: 1020 mm
- Dimensions/height max.: 1070 mm
- Dimensions/width min.: 1200 mm
- Dimensions/width max.: 1460 mm
- Depth max.: 700 mm
- Total weight, without test adapter (modules) approx.: 100 kg
- Number of system segments: 2
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- power supply 2, voltage (DC): 5 V
- power supply 2, current (DC): 8.5 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +10 °C
- Ambient temperature, operation max.: +40 °C
- Ambient temperature, storage min.: -10 °C
- Ambient temperature, storage max.: +60 °C
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 2000 m
- Test grid width: 1000 mm
- Test grid depth, horizontal: 400 mm
- Test grid area: 0.4 m²
- max. number of test adapters (modules) to be installed for size100x100: 40
- Test grid inclination, horizontal: 20 °
- Maximum permissible load on the test grid: 1,1 / 100 g/cm²
- Test points min.: 128
- Test points max.: 512
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
- Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
- Pneumatic connections min.: 40
- Pneumatic connections max.: 160
Imperial
- Dimensions/height min.: 40.15 in
- Dimensions/height max.: 42.12 in
- Dimensions/width min.: 47.24 in
- Dimensions/width max.: 57.48 in
- Depth max.: 27.55 in
- Total weight, without test adapter (modules) approx.: 220.46 lb
- Number of system segments: 2
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- power supply 2, voltage (DC): 5 V
- power supply 2, current (DC): 8.5 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +50 °F
- Ambient temperature, operation max.: +104 °F
- Ambient temperature, storage min.: +14 °F
- Ambient temperature, storage max.: +140 °F
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 6561 ft
- Test grid width: 39.37 in
- Test grid depth, horizontal: 15.74 in
- Test grid area: 4.3 ft²
- max. number of test adapters (modules) to be installed for size100x100: 40
- Test grid inclination, horizontal: 20 °
- Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
- Test points min.: 128
- Test points max.: 512
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
- Pneumatic connections min.: 40
- Pneumatic connections max.: 160
