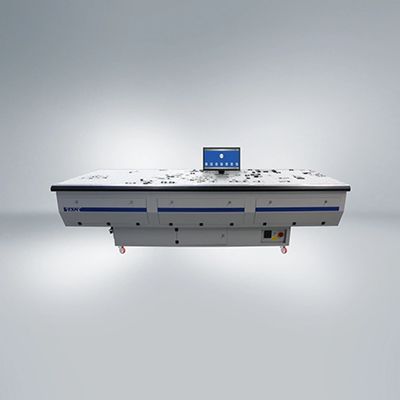

Komax - Model TS1700 - Low Voltage Testing System
The TS1700 test system is our largest and thanks to its modular design most flexible solution for testing very extensive and complex wire harnesses. The TS1700 test system is designed to optimize wire harness testing for efficient and safe production processes. The system features a horizontal test grid that allows access from all sides, enabling multiple operators to test a wire harness simultaneously. The usable area can be customized to accommodate test adapters specific to the wire harness being tested, ensuring accurate and reliable results. The modular design of the system allows for flexible integration into various production environments, with work areas available in H- or double-L-shaped configurations. The system also offers variable positioning of the test adapters and convenient adaptation. The TS1700 test system is available in other models and sizes upon request and can be combined with all cable testers.
Metric
TS1700 1200x1200
- Dimensions/height min.: 880 mm
- Dimensions/height max.: 930 mm
- Dimensions/width min.: 1350 mm
- Dimensions/width max.: 1570 mm
- Depth max.: 1350 mm
- Total weight, without test adapter (modules) approx.: 250 kg
- Number of system segments: 1
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- power supply 2, voltage (DC): 5 V
- power supply 2, current (DC): 10 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +10 °C
- Ambient temperature, operation max.: +40 °C
- Ambient temperature, storage min.: -10 °C
- Ambient temperature, storage max.: +60 °C
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 2000 m
- Test grid width: 1200 mm
- Test grid depth, horizontal: 1200 mm
- Test grid area: 1.44 m²
- max. number of test adapters (modules) to be installed for size100x100: 144
- Test grid inclination, horizontal: 0 °
- Maximum permissible load on the test grid: 1,1 / 100 g/cm²
- Test points min.: 128
- Test points max.: 1280
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
- Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
- Pneumatic connections min.: 40
- Pneumatic connections max.: 80
Imperial
TS1700 47.24x47.24in
Dimensions/height min.: 34.64 in
- Dimensions/height max.: 36.61 in
- Dimensions/width min.: 53.14 in
- Dimensions/width max.: 61.81 in
- Depth max.: 53.14 in
- Total weight, without test adapter (modules) approx.: 551.15 lb
- Number of system segments: 1
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- power supply 2, voltage (DC): 5 V
- power supply 2, current (DC): 10 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +50 °F
- Ambient temperature, operation max.: +104 °F
- Ambient temperature, storage min.: +14 °F
- Ambient temperature, storage max.: +140 °F
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 6561 ft
- Test grid width: 47.24 in
- Test grid depth, horizontal: 47.24 in
- Test grid area: 15.5 ft²
- max. number of test adapters (modules) to be installed for size100x100: 144
- Test grid inclination, horizontal: 0 °
- Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
- Test points min.: 128
- Test points max.: 1280
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
- Pneumatic connections min.: 40
- Pneumatic connections max.: 80
