Adaptronic - Model KT 211 -Low-Voltage Wiring Tester

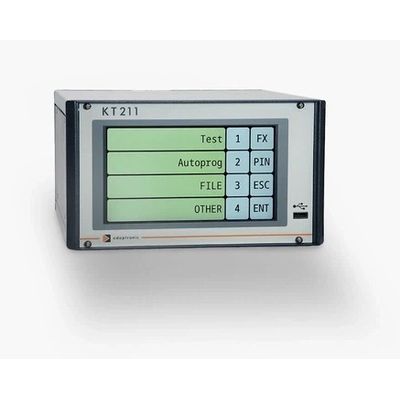

The KT 211 low-voltage wiring tester provides optimized testing of cables and wire harnesses on test benches with 512 test points (expandable to up to 2048 test points). The compact, powerful, and cost-effective KT 211 low-voltage wiring tester facilitates testing during wire harness production thanks to adapter LEDs, a built-in locking test, and an insertion aid. The KT 211 can be connected to an MES via OPC UA and offers interfaces for peripheral equipment such as cutter adapters or embossing tools.The ultra-compact device is extremely flexible – whether used as a stand-alone solution, with adapter cables, test desks, or test benches.With its built-in touch display and optional NT Control LT software package, the KT 211 enables intuitive operation as well as the easy creation, editing, and management of test programs.
KT 211
Metric
- High voltage test (AC) max.: 0 V
- Display: Color touchscreen
- Test of other components: Diodes. LEDs. Zener diodes. Varistors. Surge arresters
- Interfaces: Network
- Dimensions/height: 140 mm
- Width: 235 mm
- Dimensions/depth: 275 mm
- Weight: 3 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 12 V
- Test current (DC) max.: 10 mA
- Test points, total max.: 2048
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 1 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 1 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.01 F
- High voltage test (DC) max.: 12 V
- DIO voltage max.: 24 V
Imperial
- High voltage test (AC) max.: 0 V
- Display: Color touchscreen
- Test of other components: Diodes. LEDs. Zener diodes. Varistors. Surge arresters
- Interfaces: Network
- Dimensions/height: 5.54 in
- Width: 9.25 in
- Dimensions/depth: 10.83 in
- Weight: 6.6 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 12 V
- Test current (DC) max.: 10 mA
- Test points, total max.: 2048
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 1 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 1 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.01 F
- High voltage test (DC) max.: 12 V
- DIO voltage max.: 24 V
