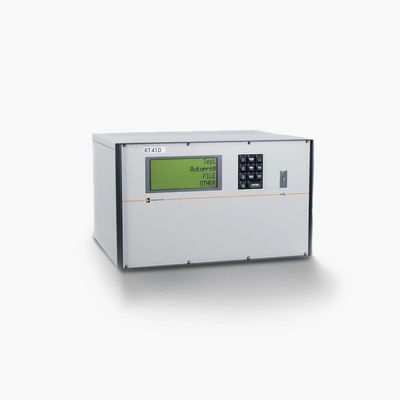

Adaptronic - Model KT 410 -Low-Voltage Wiring Tester
The basic version of the KT 410 low-voltage wiring tester includes 2048 test points (expandable to 16,384) and is ideal for testing with a high number of test points. The KT 410 low-voltage wiring tester also masters complex testing tasks. Whether in small back panels or extensive test bench applications in large-scale production – this versatile system reliably tests connections with test voltages of up to 25 VDC and test currents of up to 25 mA. The precise threshold setting enables accurate fault detection, while the component test reliably checks resistors, capacitors, diodes, and LEDs.
The KT 410 increases productivity by automatically learning what constitutes a good sample, its multilingual capabilities, and the intuitive NT Control LT software for creating and managing inspection programs. It integrates seamlessly with existing infrastructures thanks to the Microsoft network interface and various connections.
KT 410
Metric
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 275 mm
- Width: 450 mm
- Dimensions/depth: 395 mm
- Weight: ca. 11 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 25 V
- Test current (DC) max.: 25 mA
- Test points, total max.: 16384
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 5 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 25 V
- DIO voltage max.: 24 V
Imperial
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Weight: ca. 24.3 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 25 V
- Test current (DC) max.: 25 mA
- Test points, total max.: 16384
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 5 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 25 V
- DIO voltage max.: 24 V
