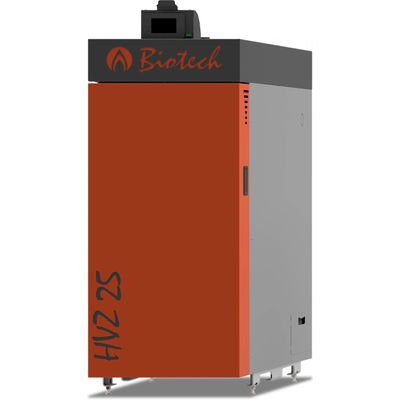

Biotech - Model HVZ25L -Lump Wood Boiler
The optimal heating system for smaller single-family houses. Sophisticated biotech technology, automatic ignition on request and a generous filling space for logs.
Most popular related searches
wood boiler
hot water boiler
log wood boiler
tube heat exchanger
combustion chamber
heat exchanger
firing system
heat exchanger cleaning system
heat exchanger cleaning
heat exchanger system
Power range up to 25.0 kW
- Boiler body with efficient insulation
- Temperature-resistant tubular heat exchanger with manual cleaning
- Safety heat exchanger
- Firing system with high-temperature fireclay combustion chamber
- Combustion chamber panels
- Integrated smoldering gas extraction
- Speed-controlled induced draft fan
- Primary and secondary air control drives
- Lambda probe
- Touchscreen with simple and clearly designed menu navigation
- 1 piece cleaning brush, 2 scrapers, and the associated holder
Particularities
1: 900 mm
2: 200 mm
3: 750 mm
4: 500 mm
5: 1900 mm
- Control
- a mixed heating circuit including heating circuit, outside temperature sensor and room remote adjuster.
- a buffer including 2 buffer sensors.
- a hot water boiler including boiler sensor.
- Ember keeping function with notification via LED or signal noise when logs need to be refilled (optionally available).
- Boiler has 3 doors, easy heating up and reheating thanks to its separate filling and heating doors
- Smoke pipe connection at the rear
1: 900 mm
2: 200 mm
3: 750 mm
4: 500 mm
5: 1900 mm
