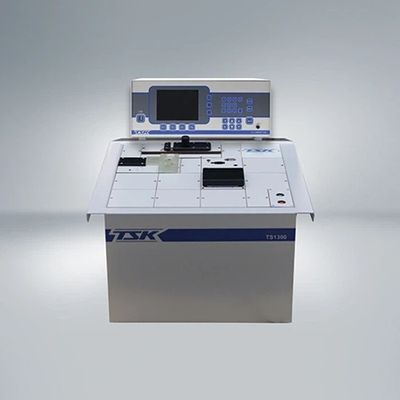

Komax - Model TS1300L -LV Test Tables & Consoles

SHARE

The smallest test systems TS1300L (low design with 600 m width) in the console housing are particularly convenient and reliable for testing of smaller cable and wire harnesses. The on-bench solutions TS 1300L can be used flexibly due to their compact size. They are equipped with frequently used test components and can also be modified according to the customer’s wishes. The ergonomically designed housing allows convenient adaptation, safe testing and reliable logging. These on-bench test systems offer an ergonomic work area (Test grid inclination 20°) with variable positioning of the test adapters as well as standardized and ready-to-use interfaces. Other models and sizes are available on request.

Most popular related searches

power supply unit

low voltage test

DC power supply

TS1300L 15.74x15.74in

Metric

Dimensions/height min.: 410 mm
Dimensions/width min.: 480 mm
Depth max.: 700 mm
Total weight, without test adapter (modules) approx.: 20 kg
Number of system segments: 1
Voltage (AC), input min.: 100 V
Voltage (AC), input max.: 240 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
power supply 1, voltage (DC): 24 V
power supply 1, current (DC) max.: 4 A
Total power, standard (depending on the number of power supply units) max.: 100 W
Ambient temperature, operation min.: +10 °C
Ambient temperature, operation max.: +40 °C
Ambient temperature, storage min.: -10 °C
Ambient temperature, storage max.: +60 °C
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Operating height (feet above sea level) max.: 2000 m
Test grid width: 400 mm
Test grid depth, horizontal: 400 mm
Test grid area: 0.16 m²
max. number of test adapters (modules) to be installed for size100x100: 16
Test grid inclination, horizontal: 15 °
Maximum permissible load on the test grid: 1,1 / 100 g/cm²
Test points min.: 128
Test points max.: 128
Cable tester CT30ix: yes
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
Pneumatic connections min.: 40
Pneumatic connections max.: 40

Imperial

Dimensions/height min.: 16.14 in
Dimensions/width min.: 18.89 in
Depth max.: 27.55 in
Total weight, without test adapter (modules) approx.: 44.09 lb
Number of system segments: 1
Voltage (AC), input min.: 100 V
Voltage (AC), input max.: 240 V
Frequency, input min.: 50 Hz
Frequency, input max.: 60 Hz
Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
power supply 1, voltage (DC): 24 V
power supply 1, current (DC) max.: 4 A
Total power, standard (depending on the number of power supply units) max.: 100 W
Ambient temperature, operation min.: +50 °F
Ambient temperature, operation max.: +104 °F
Ambient temperature, storage min.: +14 °F
Ambient temperature, storage max.: +140 °F
Air humidity non-condensing min.: 40 %
Air humidity non-condensing max.: 75 %
Emission sound pressure level (according to DIN 45635) max.: 80 dB
Protection class: IP 10
Operating height (feet above sea level) max.: 6561 ft
Test grid width: 15.74 in
Test grid depth, horizontal: 15.74 in
Test grid area: 1.72 ft²
max. number of test adapters (modules) to be installed for size100x100: 16
Test grid inclination, horizontal: 15 °
Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
Test points min.: 128
Test points max.: 128
Cable tester CT30ix: yes
Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
Pneumatic connections min.: 40
Pneumatic connections max.: 40
