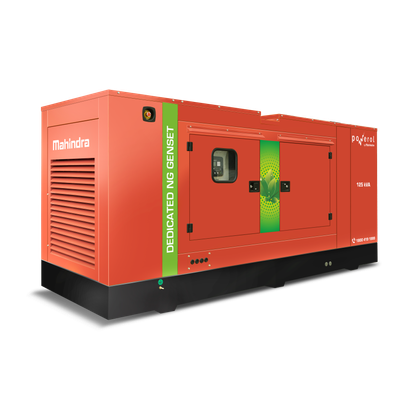

Mahindra Powerol - Model Spectro Series -Gas Genset

• COMPACT DESIGN

  • Its Recovery Time, Easily The Best In Its Category, Guarantees A Seamless Switchover To The Back-Up Power. Moreover, Its Effective Governing System Controls The Voltage Fluctuations, Thus Ensuing Complete Safety Of Your Equipments.

• LARGE FUEL TANK

  • Its Got One Of The Most Preferred Engines Fitted Inside - The Mahindra Powerol Engine. Compact And Low On Vibration, This Engine Has The Smallest Footprint As Compared To Other Engines Of Identical Ratings. Making The DG Set Apt Even For Roof-Mountings.

• LONGER ENGINE LIFE

  • Each And Every Powerol DG Set Complies With The Most Stringent Noise And Emission Norms Stipulated By The Central Pollution Control Board Of India (CPCB).

• LOW MAINTENANCE COST

  • It’s Got Other Advantages Too. Like, It’s Transported Through The Mahindra Transport Solutions Group. It Is Installed And Commissioned Through A Mahindra Authorized Dealer. It Even Comes With An Annual Maintenance Contract. It Is Most Fuel Efficient In Its Class It Offers Zero-Leak Engines Manual And AMF Control Panel Options Are Also Available

• PREFERRED BY ALL

  • A Powerol DG Set Can Be Used In The Telecom, Defence And Railway Sectors. It Can Also Be Installed At Places Like Petrol Pumps, Hospitals, Super Markets, Banks And Construction Sites

PARAMETERS  :DG MODELS

• Genset Prime Rating (kVA) *  :10.5
• Duty (Standby/ Prime)  :Prime
• Power Rating @ 100% kWe (in KW)  :8.4
• No. of Phases  :1 Ph / 3 Ph
• Output Voltage (V)  :230 / 415
• Power Factor (lagging)  :0.8
• Current (A)  :45.6/14.6
• Frequency (Hz) & RPM  :50/1500
• Governing Class  :G2
• Genset dimensions (L x W x H) in mm  :1875 X 1000 X 1195
• Genset Weight (Kg) Approx.  :720

Engine Specification

• Make  :Mahindra
• Model  :mGreen3235NGC4+
• Power Output# (Kw)  :16.7/23
• Aspiration  :NA
• No. of cylinders  :3
• Bore x Stroke (mm)  :88.9 X 110
• Displacement (Ltr)  :2.05
• Cooling System  :Liquid Cooled
• Fuel consumption @ 75% load (kg/hr) **  :2.0
• Fuel consumption @ 100% load (kg/hr)**  :2.3
• Starting system  :12 V DC Electrical
• Air Cleaner  :Dry Type
• Lube oil specification  :Maximile CNG Plus
• Total lubrication system capacity  :6.5
• Lube oil consumption @ full load$  :0.15% of Fuel consumption
• Lube oil change period (hrs.)  :500
• Radiator coolant capacity (liter)  :5.5

Alternator

• Make  :CG/LS/STAMFORD
• Enclosure Type  :IP 23
• Voltage regulation  :+/- 1% with 4% engine Governing
• Class of insulation  :H
• Maximum Unbalanced Load across Phases  :25%
