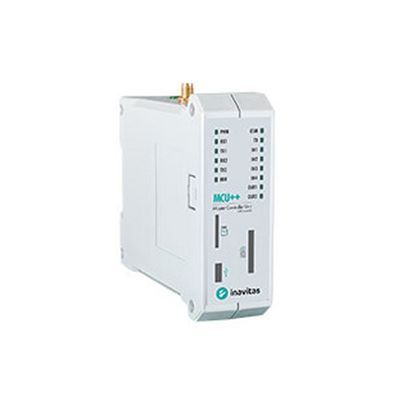

inavitas - Model MCU++ - Master Controller Unit + With Linux Os
MCU++ series is an advanced compact industrial controller based on a 32-bit 454 MHz ARM CPU. With the power of Linux OS, the user can keep application development quick and simplified. MCU++ can take almost any role in remote utility applications such as solar power plants and electricity distribution substations. It combines GPRS/GSM modem, WiFi and Bluetooth, also digital inputs, outputs and datalogger in a single device. Device with built-in 2 digital inputs and outputs and has two ethernet and serial communication ports for flexible connectivity to SCADA, field devices and remote control systems.
Device Specification
- Supply Voltage Range : 18 – 36 VDC
- Nominal Supply Voltage : 24 VDC
- CPU : ARM 926 EJ-S 32 Bit 454 Mhz
- Flash : 32 mB
- Ram : 64 mB
- Watchdog Timer : System Reset / 5 sec
- Power Consumption : 8W @ 24 V
- Real Time Clock : Available
- Configuration : MCU+
- Data Logging : Yes
- Storage : 8 mB (Up to 32 GB with SD Card)
- Over The Air : Available
Ethernet Specifications
- Data Rates : 10 / 100 Mbps
- Number of Connections : 5
- Interface : Ethernet (RJ-45) x 2
- DHCP Support : Compatible
- Ping Blocking : Yes
Wi-Fi Specifications
- Wi-Fi Protocols : 802.11 b/g/n
- Frequency Range : 2.4 GHz ~ 2.5 GHz (2400M ~ 2483.5M)
- RF Certification : SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
- Wi-Fi Certification : Wi-Fi Alliance
- Wi-Fi Mode : Station / SoftAP / SoftAP + Station
- Security : WPA / WPA2
- Network Protocols : IPv4, TCP / UDP / HTTP / FTP
Bluetooth Specifications
- Bluetooth Radio : NZIF Receiver with -97 dBm sensivity
- Bluetooth Protocols : Bluetooth v4.2 BR/EDR and BLE specification
- Features : Class 1, 2 and 3 transmitter with Advanced Frequency Hopping
GSM Specifications
- Embedded GSM : Yes (Optional)
- Operating Frequencies : Standard (Quad Band GSM module 850/900/1800/1900 MHz)
- Number of Connections : 5
- GSM Antenna : 824-960/1710-2170 MHz 3dbGSM Antenna
- Stop Bit and Parity Bit Adjustment : Yes
- Dispatch of warnings and alarms from software as text message to adminis trators possib : Yes
- 3G / 4G Connection : IPv4, TCP / UDP / HTTP / FTP
Communication Specifications
- Communication Protocols : Modbus-TCP (Master/Slave), Modbus-RTU (Master), IEC60870-5-104 (Serv er), IEC62056-21
- IP Protocols : TCP / UDP / HTTP / HTTPS / FTP / SFTP / TFTP / NTP / SNTP / SSH / DHCP and IPSEC VPN
- IOT Protocols : Secure MQTT
- Serial Interfaces : 2 x RS-485 (Isolated), Micro USB 2.0
- RS-485 BaudRate : 1200bps – 115200bps
- USB Data Transfer Speed : 480 Mbit/s
- IP Filtering & Routing : Available
Digital Input Specifications
- Number of Digital Input Channels : 4
- Input Channel Voltage Range : 0 – 36 VDC / 0 – 150 VDC / 0 – 250 VAC (Shoud be defined on order)
- Input Channel Isolation : Available, Isolated with Optocoupler
- Input Current : 1.5 mA / Channel
- Input Filter : Programmable, Default: 20ms
- Input Change Counter : 32 Bit
Digital Output Specifications
- Number of Digital Output Channels : 2 (Type Dry-Contact)
- Output Channel Voltage Range : 0 – 36 VDC (Shoud be defined on order)
- Nominal Output Voltage : 24 VDC / 110 VDC / 220 VAC
- Output Type : Dry-Contact Relay
- Max. Output Current : 2A
- Load Type : Resistive, Inductive
- Output Channel Isolation : Magnetically
Environment Conditions
- Standards : IEC 61326-1, EN 301489-1, IEC 61010-1, EN 60950-1
- Operating Temperature : -20°C / +70°C
- Storage Temperature : -40°C / +70°C
- Operating Humidty : 25% – 95% RH
- Protection Class : IP20
Mechanical Specifications
- Device Dimensions (W x H x D) : 35mm x 100mm x 115mm
- Weight : 250gr
