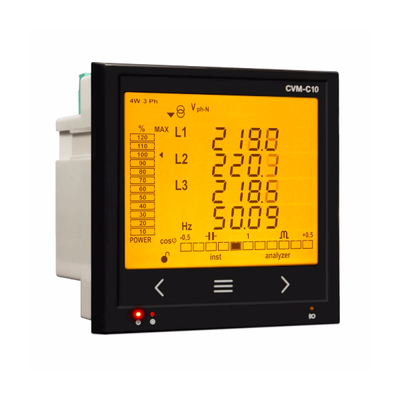

Measurlogic - Model CVM-C10 -Energy Meter

It is available with 333mV or 5A CT inputs (model dependent)

It provides both RS-485 Modbus RTU or BACnet MS/TP protocols that is software selectable. Two digital inputs and two digital outputs are also standard.

• Revenue Grade : Class 0.5S Energy accuracy 5A CT inputs
•                            : Class 1 Energy accuracy 333mV CT inputs
• Front panel mounting (96mm x 96mm)
• Backlit high-contrast LCD screen
• RS-485 Modbus RTU and BACnet MS/TP serial communications (software selectable)
• 2 transistor outputs configurable for impulses or alarms
• 2 relay outputs configurable as alarms
• 2 digital inputs for selecting three tariffs or detecting logical states
• Allows for tariff selection through communications

Display features and interface:

• Quick display using a single button
• Capacitive keypad with three keys
• Backlit high-contrast LCD screen

Other features:

• RS-485 serial communications – Modbus RTU and BACnet MS/TP
• 2 transistor outputs configurable for impulses or alarms
• 2 relay outputs configurable as alarms
• 2 digital inputs for selecting three tariffs or detecting logical states
• Allows for tariff selection through communications
• Revenue Grade : Class 0.5S Energy accuracy 5A CT inputs
• Class 1 Energy accuracy 333mV CT inputs

• Measurement in medium- and low-voltage installations
• Measurement in three-phase circuits (three or four wires), two-phase circuits (with or without neutral), single-phase circuits and ARON
