STI - Model Titan 130 - Mechanical Drive Package

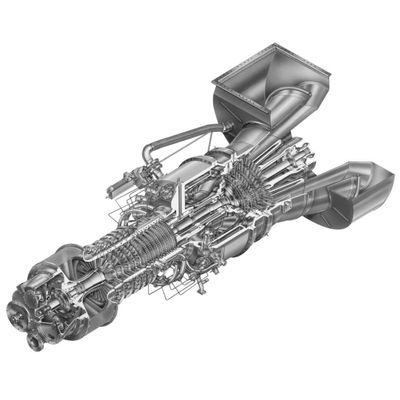

The Titan 130 gas turbine two-shaft for compressor and mechanical drive applications is designed to deliver a simple-cycle thermal efficiency of 36 percent.
Most popular related searches
mechanical drive package
gas turbine design
combustion system
gas turbine
turbine design
gas turbine shaft
gas turbine cycle
gas turbine compressor
- Introduced in 1997
- Scaled design from the Taurus 70; Based on Mars Design and Experience
- High Efficiency, Simple-Cycle Gas Turbine
- Designed for Long-Life Industrial Applications
- Low Dry Emissions (Optional)
- Designed-In Maintainability
- Depending on the operating conditions, an extended time between overhaul is available.
Units: US
- Power: 23,470 hp
- Heat Rate: 6800 Btu/hp-hr
- Exhaust Flow: 452,830 lb/hr
- Exhaust Temperature: 895º F
- Combustion System: SoLoNOx (DLE) Conventional
Units: Metric
- Power: 17,500 kW
- Heat Rate: 9620 kJ/kW-hr
- Exhaust Flow: 205,400 kg/hr
- Exhaust Temperature: 480º C
- Combustion System: SoLoNOx (DLE) Conventional
