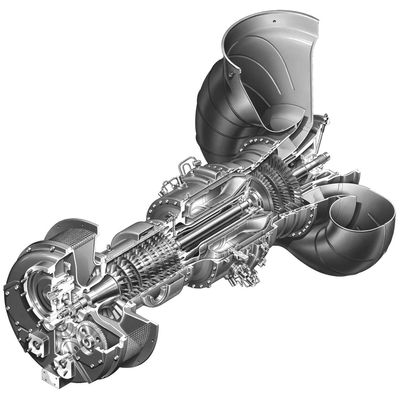

STI - Model Saturn 20 - Mechanical Drive Package
Saturn gas turbines have proven themselves in over 4800 installations. Introduced in 1960, they have logged more than 620-million operating hours and are available in a single-shaft, constant-speed configuration for driving generators.
Most popular related searches
mechanical drive package
gas turbine design
combustion system
gas turbine
turbine design
gas turbine cycle
combustion unit
- Introduced in 1960
- High Efficiency, Simple-Cycle Gas Turbine
- Designed for Long-Life Industrial Applications
- Designed-In Maintainability
- Depending on the operating conditions, an extended time between overhaul is available
Units: US
- Power: 1590 hp
- Heat Rate: 10,370 Btu/hp-hr
- Exhaust Flow: 51,615 lb/hr
- Exhaust Temperature: 970ºF
- Combustion System: Conventional
Units: Metric
- Power: 1185 kW
- Heat Rate: 14,670 kJ/kW-hr
- Exhaust Flow: 23,410 kg/hr
- Exhaust Temperature: 520ºC
- Combustion System: Conventional
