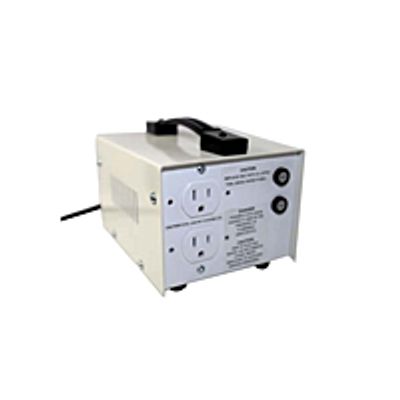

Triad Magnetics - Model MD-250-U -Medical Grade Isolation Power Transformer

SHARE
The MD-250-U is a medical grade isolation power transformer designed for use in medical environments where reliable electric isolation is vital. It provides a maximum power output of 250 VA and an input voltage of 120 V with a tolerance of ±10%. The transformer operates at both 50 Hz and 60 Hz frequencies, making it versatile for various applications. It features an alternating current output voltage at a maximum load of 2.08 A and ensures a typical voltage regulation of 8% from full load to no load. The device is engineered with high safety standards, being certified to UL 60601-1 and CSA-C22.2 medical standards, though not suited for life-critical applications. The transformer exhibits a high efficiency of 92% at full load and maintains a leakage current of less than 50 µA. Constructed with a steel enclosure that is powder-coated white, it is designed for horizontal mounting with rubber feet. The MD-250-U is built to withstand operational conditions up to 60 °C ambient temperature and adheres to industry standards such as CSA, cULus, and RoHS 2015/863/EU compliance.
Most popular related searches
power transformer
isolation transformer
power transformer design
voltage regulation
voltage regulating
voltage regulator
transformer isolation
toroidal transformer
load current
These medical grade isolation boxes are built using a toroidal transformer construction that inherently helps reduce stray fields, increases efficiency and minimizes size compared to traditional EI transformers. Built with Class F (155º) insulation system. The enclosure is made of steel and powder coated white.



Maximum Power: 250 V·A

Input Voltage1: 120 V

Output Voltage2: 120 V

Input Voltage Tolerance (Power Cord): ±10 %

Frequency (Power Cord): 50 Hz, 60 Hz

Note for Output Voltage: Alternating Current (AC) Output Voltage (Receptacle) at Maximum 2.08 A.

Typical Voltage Regulation from Full Load to No Load: 8 %

Alternating Current (AC) Input to Output Voltage (Hi-Pot): 3000 V

Alternating Current (AC) Input and Output to Enclosure Voltage (Ground) (Hi-Pot): 1500 V

Typical Efficiency at Full Load: 92 %

Operating Ambient Temperature: Not to Exceed 60 ºC

Leakage Current: Less Than 50 µA

Typical Leakage Current: 10 µA

Fusing: Replace only with 3.0 A, 250 VAC, Slow Blow, UL Listed Fuses.

Safety: Medical

Length: 5.28 in 134 mm

Width: 6.93 in 176 mm

Height: 5.12 in 130 mm

Weight: 4.0 kg

Warranty: 5 years

Enclosure Material: Steel

Enclosure Finish: Powder Coated

Enclosure Color: White

Mounting: Rubber Feet for Horizontal Mounting.

Insulation Class: Class F (155º)

Industry Standards: CSA cULus Listed RoHS 2015/863/EU
