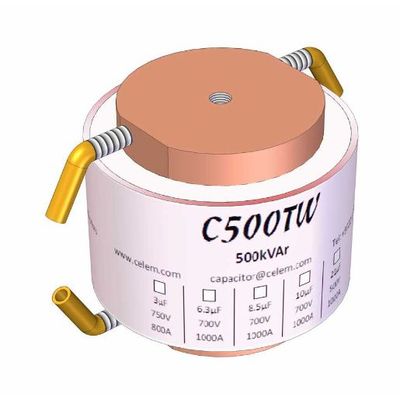

CELEM - Model C500TW - Medium Frequency Water-Cooled Power Capacitor

Water-cooled capacitors offered by Celem are designed to provide optimal performance by integrating water cooling within the capacitor itself. The range includes several models such as the C500TW, CSP 505, CSP 555, CSM 800, CSP 1000, CSP 1200, CMF, QUAD 1000, QUAD 1001 HV, and CSP 1005/1500. These capacitors cover a wide range of applications, from medium to high frequencies, and offer robust and flexible mounting options. For instance, the C500TW model is based on the C500T but includes water cooling for improved performance. The CSP 505 and CSP 555 models offer 500kVAr and 800kVAr, respectively, while the CSM 800 can be mounted in either CSP or CSM mode. The CSP 1000 and CSP 1200 are designed for high frequency and medium frequency applications, respectively. The CMF model features a patented structure that allows for internal serial connection of two elements, doubling the voltage. The QUAD series offers flexible mounting options, with the QUAD 1001 HV providing higher capacitance and voltage values. Lastly, the CSP 1005/1500 is used in ultra-high power systems and can be tuned with a specialized model.
