Atlas - Model 800 SL WS P -Medium/Large Incinerator for Burning Solid and Liquid Waste

FromAtlas Incinerators ApS

SHARE

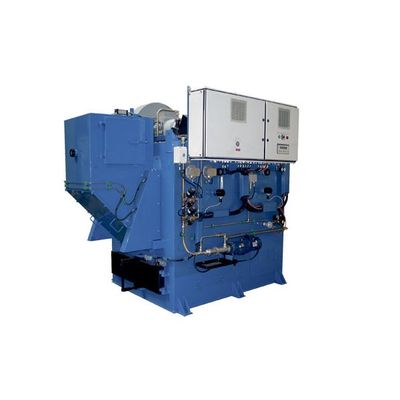

The 800 SL (B) WS P is a medium/large incinerator for burning solid and liquid waste, available with a 30L or 70L (waste bag) sluice size, and suitable for larger merchant vessels.

Most popular related searches

large incinerator

solid waste incineration

sludge oil incineration

combustion waste

waste combustion

Combustion Capacity (kW) : 814
Combustion Capacity (kcal/h) : 700.000
Combustion Capacity Solid Waste (IMO waste specification) : 100 kg/h max. 400 kg/24 hours
Combustion Capacity Liquid Waste (IMO standard is 20% water content) :

70 l/h at 0% water content
95 l/h at 20% water content
140 l/h at 50% water content

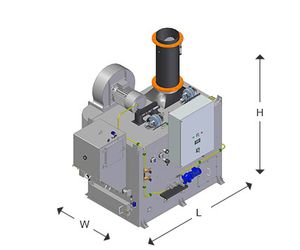

800 SL WS P
1. W: 2013mm
2. L: 2867mm
3. H: 2852mm
800 SL B WS P
1. W: 2013mm
2. L: 3080mm
3. H: 2852mm

Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
Settling tank not necessary
Burning oil sludge with up to 50% water without pilot fuel
Three chambered design - clean burn
Atlas designed sludge burner with no rotating parts
Simultaneous burning of sludge oil and solid waste
