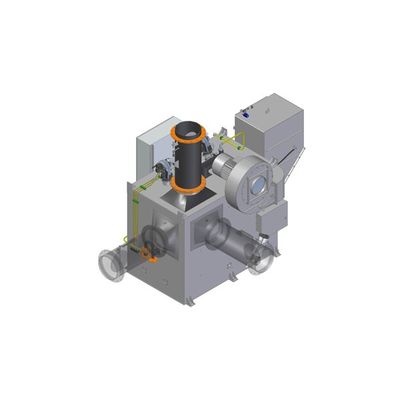

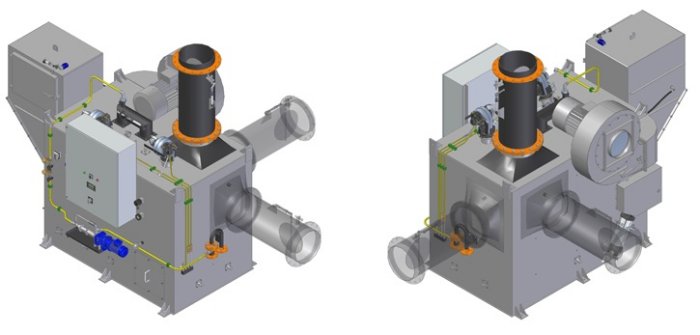

Atlas - Model 800 SL P -Medium/Large Incinerator for Burning Solid and Liquid Waste
The 800 SL P is a medium/large incinerator for burning solid and liquid waste, suitable for larger merchant vessels, and where no waste sluice is required.
Most popular related searches
large incinerator
solid waste incineration
incineration
incinerator
sludge oil incineration
sludge oil
combustion waste
waste combustion
waste gas
burner
- Combustion Capacity (kW) : 814
- Combustion Capacity (kcal/h) : 700.000
- Combustion Capacity Solid Waste (IMO waste specification) : 350 L/charge
- Combustion Capacity Liquid Waste (IMO standard is 20% water content):
- 70 l/h at 0% water content
- 95 l/h at 20% water content
- 140 l/h at 50% water content

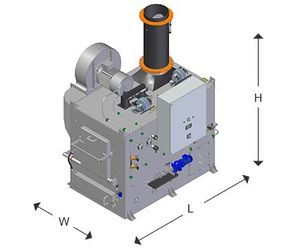

- W: 2013mm
- L: 2450mm
- H: 2852mm
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
