ITM - Model HGas2SP -Medium Size Containerised PEM Electrolyser Hydrogen Generation System

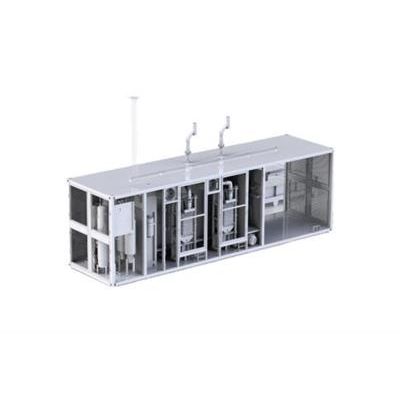

The HGas2SP Plug&Play product includes two ITM Power high-efficient PEM electrolyser stacks alongside all the necessary sub-systems required to produce high-purity, self-pressurised hydrogen gas. The MEP1 is rated at ~1.3MW start of life (including all sub-systems) and is able to produce ~540kg of hydrogen per day. The fully integrated turn-key system is packaged in two separate ISO containers. The Electrolyser container includes the electrolyser stacks, process equipment (including water clean-up), hydrogen purification and a PLC control system. The Power Supply container includes power distribution within the equipment and rectifiers for the electrolyser stacks.
The customer is required to supply a medium voltage AC electrical connection and a water supply which is of drinking quality. The ITM Power Plug&Play unit will take care of the rest. The end result is high-purity hydrogen gas which is ready to be fed into the end-customers downstream process. The hydrogen is suitable for use in refuelling stations, gas-grid injection and any other industrial process which requires hydrogen.
