Atlas Incinerators ApS

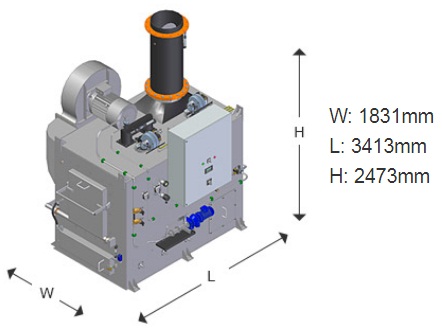

Atlas - Model 600 SL M -Medium Sized Incinerator for Burning Solid and Liquid Waste
The 600 SL M is a medium sized incinerator for burning solid and liquid waste with a high water content, (above 50%), suitable for large offshore supply vessels and merchant vessels, and where no waste sluice is required.
Most popular related searches
medium size incinerator
solid waste incineration
incineration
incinerator
sludge oil incineration
sludge oil
combustion waste
waste combustion
waste gas
burner
- Combustion Capacity (kW) : 581
- Combustion Capacity (kcal/h) : 500.000
- Combustion Capacity Solid Waste (IMO waste specification) : 250 L/charge
- Combustion Capacity Liquid Waste (IMO standard is 20% water content) :
- 50 l/h at 0% water content
- 66 l/h at 20% water content
- 100 l/h at 50% water content

- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
