Edgeware Technology Limited

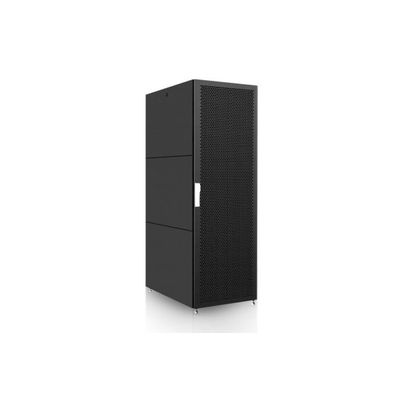

Edgeware - Model D1000 - Micro Data Center Convergence
Edge computing brings new challenge to enterprise branch. Micro data center gives you all in one solution with rack, power, cabling, air-conditioning, monitoring, fast deployment and easy O&M, low TCO. One Hour Installation,No Condensation. PUE 1.45.
Most popular related searches
power distribution system
power line monitoring
power distribution
power monitoring
distributive power
distributed power
power line
power cable
condition monitor
condition monitoring
- Model : UP
- Dimension(W*D*H) : 600*1200*2000
- Available Space : 30U
- IT equipment rated power (KVA) : 3KVA
- Input Voltage(V) : 110V/220V 50/60Hz
- Power Distribution : 3KVA Power Distribution System, dual lines input backup
- UPS : 3KVA
- Battery : Depends on project configuration
- Cooling : 3.5KW Air Conditioner
- Ingress protection level : IP5X
- Static load (kg) : 1500Kg
- Door : Dual Door, front and back.
- Environment monitoring :
- Temperature and humidity
- Smoke sensor
- Door sensor
- Power monitoring : UPS and power line monitoring
- Monitoring Screen : 10.1 Inch touch screen
- Model : UP
- Dimension(W*D*H) : 600*1200*2000
- Available Space : 72U
- IT equipment rated power (KVA) : 3KVA
- Input Voltage(V) : 110V/220V 50/60Hz
- Power Distribution : 3KVA Power Distribution System, dual lines input backup
- UPS : 3KVA
- Battery : Depends on project configuration
- Cooling : 3.5KW Air Conditioner
- Ingress protection level : IP5X
- Static load (kg) : 1500Kg
- Door : Four Doors, two front and two back.
- Environment monitoring :
- Temperature and humidity
- Smoke sensor
- Door sensor
- Power monitoring : UPS and power line monitoring
- Monitoring Screen : 10.1 Inch touch screen
- Model : UP
- N is the cabinet quantity
- Dimension(W*D*H) : (N*600)*1200*2000
- Available Space : Based on Configuration
- IT equipment rated power (KVA) : Depends on the configuration
- Input Voltage(V) : 110V/220V 50/60Hz
- Power Distribution : Power Distribution System, dual lines input backup, rated power depends on the configuration
- UPS : Depends on the configuration
- Battery : Depends on project configuration
- Cooling : Depends on the configuration
- Ingress protection level : IP5X
- Static load (kg) : N*1500Kg
- Door : Dual Door, front and back.
- Environment monitoring :
- Temperature and humidity
- Smoke sensor
- Door sensor
