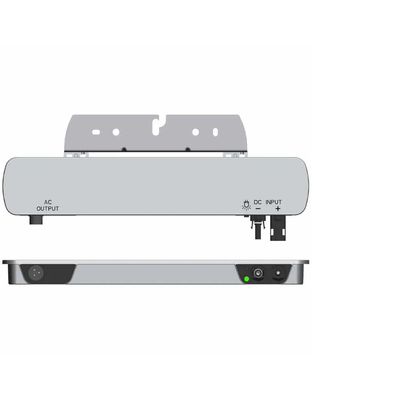

AEconversion - Model INV315-50 -Micro Inverter
The AEconversion INV315-50 micro inverter converts generated energy into grid-compliant alternating current. For this purpose, the INV315-50 is directly connected to one individual PV module. The individual conversion enables optimal utilization of solar energy. The INV315-50 micro inverter is compatible with modules up to 400W with a maximum PV input voltage of 50V.
Most popular related searches
microinverter
inverter
photovoltaic power
energy consumption
power factor
photovoltaic module
solar energy
utility solar
voltage data
energy conversion
Input:
- Maximum PV power: 290W – 400W
- Maximum DC voltage: 50V
- Min./Max. starting voltage: 20V / 50V
- MPP range: 24V – 40V
- Maximum DC voltage: 9,5A
Output:
- AC nominal power: 300W
- AC voltage: 230V
- AC voltage range: 184V – 264V
- Rated current: 1,25A
- Power factor: > 0,99
Efficiency:
- Maximum efficiency: 96,0%
- European efficiency: 95%
- MPP efficiency: 99,8%
- Mechanical data:
- Weight: 0,8kg
- Operating temperature range: -25°C to +70°C
- Cooling / Natural convection: Natural convection
- Energy consumption at night: 30mW
- Max. operating altitude above sea level: 2000m
- Protection class: Class I
Housing:
- Dimensions housing: 390mm x 100mm x 30mm (WxHxD)
- Housing Protection class: IP65 & NEMA4
- Housing material: Aluminium
Special features:
- ENS: integrated according to VDE AR-N 4105
- Communication variants: smart RF 2.4GHz
50Hz-Version:
- Rated frequency: 50,0Hz
- Frequency range: 47,5Hz – 51,5Hz
- Product safety: IEC 62109-1, IEC 62109-2 IEC 55011B, EN 50178, IEC 62103
- EMC: EN 61000-6-2, EN 61000-6-3
60Hz-Version:
- Rated frequency: 60,0Hz
- Frequency range: 59,5Hz – 60,3Hz
- Product safety: UL 1741, IEEE 1547, CSA C22.2
- EMC: FCC Part 15 Class B
