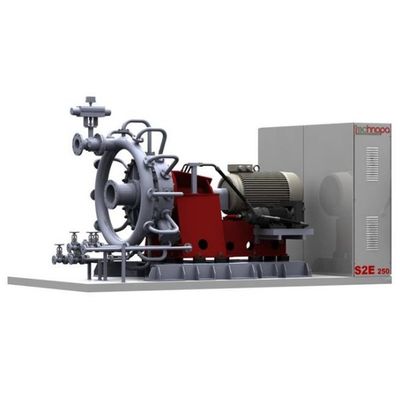

Technopa - Model S2E I. 50-200 kW -Micro Turbines

• High efficient, steam based energy generator
• Efficient operation in the conditions of wet steam
• Excellent ratio power/weight
• Modular construction with simple installation
• Environmental friendly technology
• Fully usable clean output steam
• Working life min. 100 000 hours
• Full power reaction time in 10 minutes

• Characteristics: Specification
• Electric Power: 50-500 kWe: 50 – 200 kWe
• Incoming steam temperature:
• min 130 °C
• max 350 °C
• Incoming pressure:
• min 4,0 bar Abs.
• max 35,0 bar Abs.
• Outcoming steam temperature:
• min 105 °C
• max 315 °C
• Outcoming steam pressure:
• min 1,1 bar Abs.
• max 6,0 bar Abs.

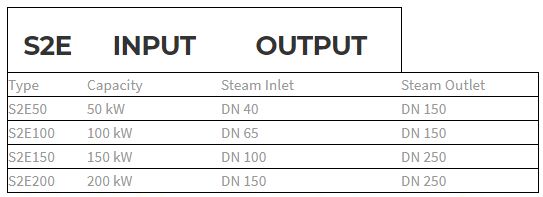

• Steam flow:
• min 1,1-3 t/hour
• max 20 t/hour

• Characteristics: Specification
• Voltage 50-500 kWe: 230V 480VAC /400VAC
• Frequency: 50 Hz / 60 Hz
• Grid-isolated regulation
• / steady state /:
• +/- 0,50 % nominal voltage max
• +/- 0,50 % nominal frequency
• Isolation class: IP 55, IP 42

Patented turbine

Non-blade turbine wheel
Slow working revolutions of the turbine/ 3000 rpm /
Efficient alteration of the Velocity Head on the power in
turbine is min 95%
Turbine is not a pressure tank

Applications

Reduction turbine / electric energy production
Electric energy production in the prime or secondary
steam line

High end level of the components

LANDIS&GYR valves
Armatures made by TYCO company

Focus on the Safety and Reliability

Sensors made by Baluff
Tripping safety valve TYCO

Simple operation and control

Automatic computerized control system
touch panel for operation

Internet connection /optional/

Generator

Asynchronous generator

Certification

Steam and condensate connection based on DIN 2576
CE certification of the S2E module

Sound Levels

• Characteristics: Specification
• Standard: 80dB

Net weight of machine with frame

• Characteristics: Specification
• Max: 12 500 kg
• Min: 1 500 kg

Physical Specification (typical)

• Dimension: Size
• Length: 7200 mm
• Width: 2500 mm
• Height: 3100 mm
• (Module itself 2400 mm)

Service interval for bearings exchange

• Characteristics: Specification
• Turbine: 25.000 hrs
• Generator: 25.000 hrs
• The investment into an S2E Module creates for the customer the most
• efficient profitability on the basis of the waste steam in the existing system.
