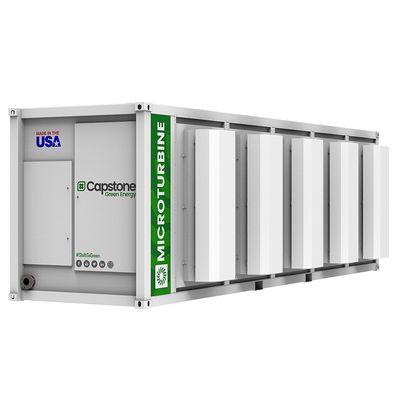

Capstone - Model C1000S - Microturbine Power Generation Systems

• Rating:1,000 kW
• Electrical Efficiency LHV:33%
• Combined Heat and Power Efficiency:Up to 90%
• Voltage:400-480 VAC
• Frequency:50/60 Hz, Grid Connect 10-60 Hz, Stand Alone
• Electrical Service:3-Phase, 4-Wire Wye
• Width:3.0 m (117 in)
• Depth:9.1 m (360 in)
• Height:2.9 m (114 in)
• Weight:Grid Connect - 17,000 kg (37,400 lbs); Dual Mode - 20,500 kg (45,200 lbs)
• Net Heat Rate LHV:10.9 MJ/kWh (10,300 BTU/kWh)
• Exhaust Temperature:280 ºC (535ºF)
• Exhaust Gas Flow:6.7 kg/s (14.7 lbm/s)
• Compatible Fuels:Natural Gas, Liquid Fuels (Ultra Low Sulfur Diesel #2), Biogas (Landfill, Digester), Associated Gas, Sour Gas, LPG

Notes

1. Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
2. Height dimensions are to the roofline. Exhaust outlet can extend up to 7 inches above the roofline.
3. Specifications based on high pressure natural gas systems. Values may vary with other fuel types.
