Application range
Particularly suited for thermal exchange process of industrial products having a
low or medium viscosity even with particulates.
Standard materials
Stainless steel AISI 304/316 L (Other kind of materials are available on request)
Standard pressure project
10 bar
(Higher pressures are available depending on utilized connections)
Standard temperature project
184°C
Connections
UNI DIN ANSI FLANGE
MBS S.r.l.
- Home
- Companies
- MBS S.r.l.
- Products
- MLM - Model Multiflo - Heat Exchanger ...

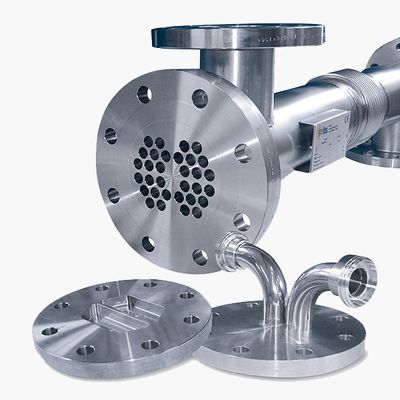

MLM - Model Multiflo -Heat Exchanger for Industrial Applications
FromMBS S.r.l.
The MULTIFLO heat exchanger is designed with small diameter corrugated tubes enclosed in an external jacket and welded on tube plates at both ends. This multi-passage heat exchanger features special heads that allow for backflow on the tubes side. Additionally, an expansion joint is fitted on the external jacket to accommodate thermal expansion. The heat exchanger's design facilitates the thermal processing of products flowing within the tubes, while a service fluid circulates in the external jacket. Constructed from AISI 304/316 L stainless steel as standard, the system can also be tailored with other materials upon request. It is built to operate under standard pressures of up to 10 bar and temperatures reaching 184°C, with higher specifications available based on the utilized connections. This makes the MULTIFLO heat exchanger ideal for thermal exchange processes involving industrial products with low to medium viscosity, even those containing particulates.Most popular related searches
heat exchanger
heat exchanger design
heat exchanger tube
industrial heat exchanger
industrial heat
industrial heating
MULTIFLO heat exchanger consists of small diameter corrugated tubes fitted inside an external jacket and welded on tube plates at end sides. MULTIFLO is a multi-passage/many-passages heat exchanger and tubes side backflow is allowed by special heads. An expansion joint is fitted on external jacket. The product to be thermally processed flows inside small diameter tubes while service fluid flows inside the external jacket. MULTIFLO Heat Exchanger is fully welded.
