BKtech - Model BioMax -Mobile Bioenergy Plant
BioMax is one of a kind among mobile bioenergy plants in the range of 7–15 MW. As such, BioMax is just as suitable for industrial applications as it is for municipalities looking to phase out their fossil-fueled heating plants. BioMax is arranged in modules and equipped with multi-fuel burners that can either run on wood powder or alternative fuels.
BKtech’s BioMax is a mobile bioenergy plant for efficient, reliable and climate-friendly energy production. As we manufacture and optimise our plants at our own state-of-the-art factory in Blomstermåla, we are able to make quick deliveries and installations throughout Sweden and beyond. All components in our plants are manufactured in the Nordic countries, and Siemens supplies our PLC systems for control and monitoring. A high-performance system combined with intelligent control allows the plant to handle rapid load variations in a very flexible and stable way. Automated processes and minimal maintenance requirements contribute to excellent availability and secure energy supply.

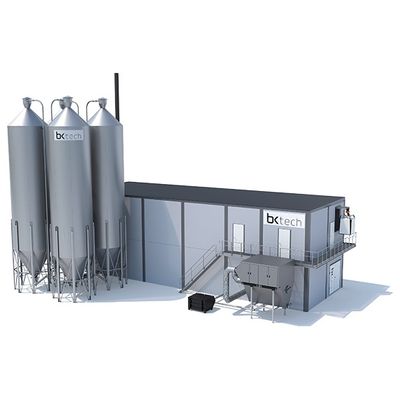

BKtech’s BioMax is generally supplied with 2–4 85 m3 wood pellet silos, which equate to 540–1080 MWh of energy. This bioenergy plant consists of 6–8 modules that are manufactured and assembled in our production facility in Småland, Sweden. BioMax features high-quality components, burners from well-known WTS AB, PLC systems from Siemens and a self-developed bio-boiler.
This plant is generally delivered by truck according to European standards. BKtech has established a number of partnerships with both carriers and contractors to help with transportation. In addition, BKtech’s BioMax is easy to install: It takes little preparation, most often just a cast slab on which we place the bioenergy plant. BioMax is equipped with connectors and flanges to be linked to the end client’s own system.
We at BKtech have developed BioMax with the aim of achieving as small a footprint as possible. BioMulti measures 7m in width, 15m in length and has a height of 7m, chimney and silo excluded. BioMax can also be disassembled and relocated, allowing the bioenergy plant to be sold on, should such a need arise. Mobile bioenergy plants lead to lower project costs for the end client thanks to very few preparatory steps, fast deliveries and effective integration with the client’s own systems.
- Modular design and high-quality components
- Automated fuel and ash management
- Bio-burner with automatic start and stop
- High-speed regulation of boiler output
- Made in Sweden by BKtech
- Up to 70% lower energy-related costs compared to fossil fuels
- Fastest delivery, integration and commissioning in the whole industry
- Compliant with European standards for road freight transport
- Small footprint that saves time, space and money
- Excellent availability and low life cycle costs
- 100% fossil-free and climate-neutral steam production
- Wood pellets are a renewable source of bioenergy (derived from waste from the wood industry)
- Reducing CO2 emissions and overall carbon footprint of operations
- Contributing to sustainable development and decreased dependence on fossil fuels
