Adaptronic - Model KT 236 -Mobile High-Voltage Wiring Tester System

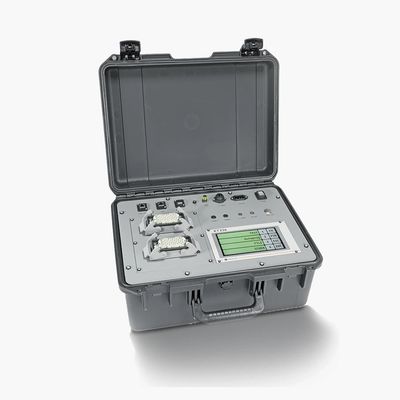

The KT 236 mobile high-voltage wiring tester with display and control software in a hard-shell case checks up to 512 test points for insulation up to 1000 VDC and test voltages of 80 - 1000 V. The portable KT 236 test system can be used anywhere thanks to its waterproof, hard-shell case that even floats. In this context, the wiring tester easily handles even the toughest environmental conditions –whether in aviation, railroad technology, or military technology.Witjh high-voltage tests up to 1000 VDC and a flexible choice between a 230 VAC or 9 - 30 VDC voltage supply, the KT 236 tests resistors, capacitors, diodes, LEDs, varistors (100 - 800 V), and surge arresters. The test point interfaces as well as the design of the connection, short-circuit, and component tests can be adapted to your specific needs.The test system does not require a PC for operation – a high-contrast display and intuitive control buttons are built into the case to save space.
KT 236
Metric
- Display: Color touchscreen
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Dimensions/height: 229 mm
- Width: 487 mm
- Dimensions/depth: 386 mm
- Weight: > 8 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 1000 V
- Test current (DC) max.: 400 mA
- Test points, total max.: 512
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 1 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 1 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.01 F
- High voltage test (DC) max.: 100 V
- DIO voltage max.: 24 V
Imperial
- Display: Color touchscreen
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Weight: > 17.6 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (DC) max.: 1000 V
- Test current (DC) max.: 400 mA
- Test points, total max.: 512
- Continuity test via threshold identification min.: 1 Ω
- Continuity test via threshold identification max.: 1 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 1 MΩ
- Resistance measurement min.: 1 Ω
- Resistance measurement max.: 1 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.01 F
- High voltage test (DC) max.: 100 V
- DIO voltage max.: 24 V
